Data sheet
Article number 696418
Wall and ceiling light
type ..6418
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

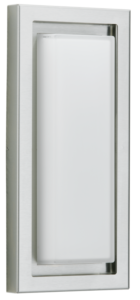

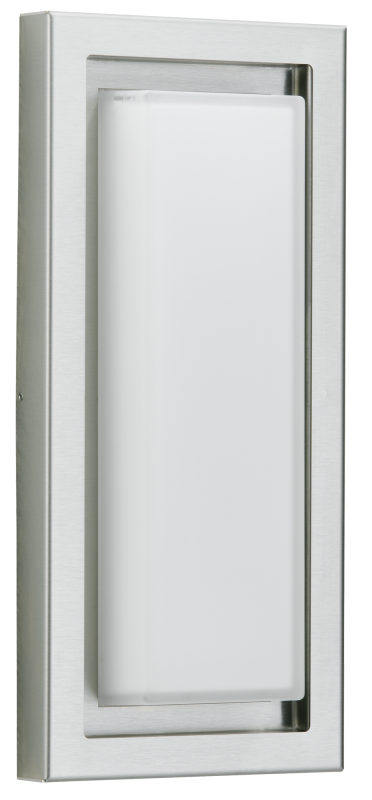

Albert wall and ceiling light 696418
made of stainless steel with opal glass1 x LED 16W, 1600 lm, light colour warm white 3000 IP 44 – protection class : 160 x 360 x 60 mm
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass opal
Documents and files
Assembly instruction

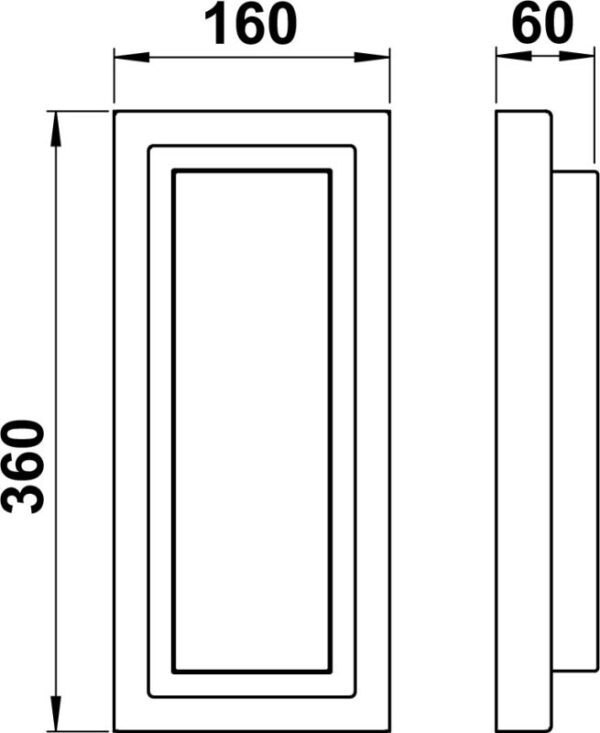

Dimensioned drawing
Full catalog 21 / 22
Spare parts
| 90210351 - G 351, glass opal matt | show |
Additional information
| Weight | 2,20 kg |
|---|---|
| Colour of light | White |
| With control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Dimming phase cut-off | Yes |
| Lamp type | LED exchangeable |
| Suitable for lamp power | 16 W |
| Material housing | Stainless steel |
| Colour housing | Stainless steel |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| Suitable for surface mounting | Yes |
| Material cover | Glass opal |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Protection class | I |
| Voltage type | AC |
| No dim function | Yes |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP44 |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Height/depth | 360 mm |
| Rated luminous flux according to IEC 62722-2-1 | 1600 lm |
| Colour temperature | 3000 K |
| Suitable for wall mounting | Yes |
| Power factor | 0.9 |
| Width | 160 mm |
| Photobiological safety according to EN 62471 | RG1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Max. system power | 16 W |
| Mounting Type | Decke, Wand |
| Number of poles | 3 |
| Light output | 1-seitig |
| Unified Glare Ratio (UGR) | 1 |
| Height | < 700 mm |
| Colour rendering index CRI | 80-89 |
| Exchangeable control gear | Yes |
| Length | 60 mm |
| Connection type | Screwed terminal |
| Dimming depending on control gear | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Surface protection housing | Untreated |
| Type of wiring | Ending |
| Conductor cross section | 2.5 mm² |
| Shape | Eckig |
