Article number Select a color, please

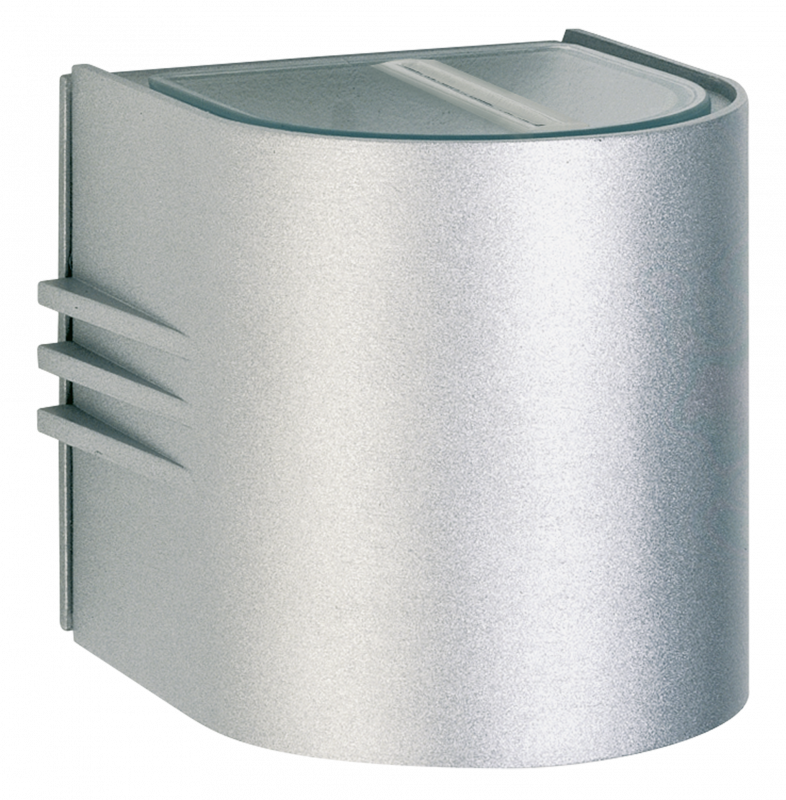

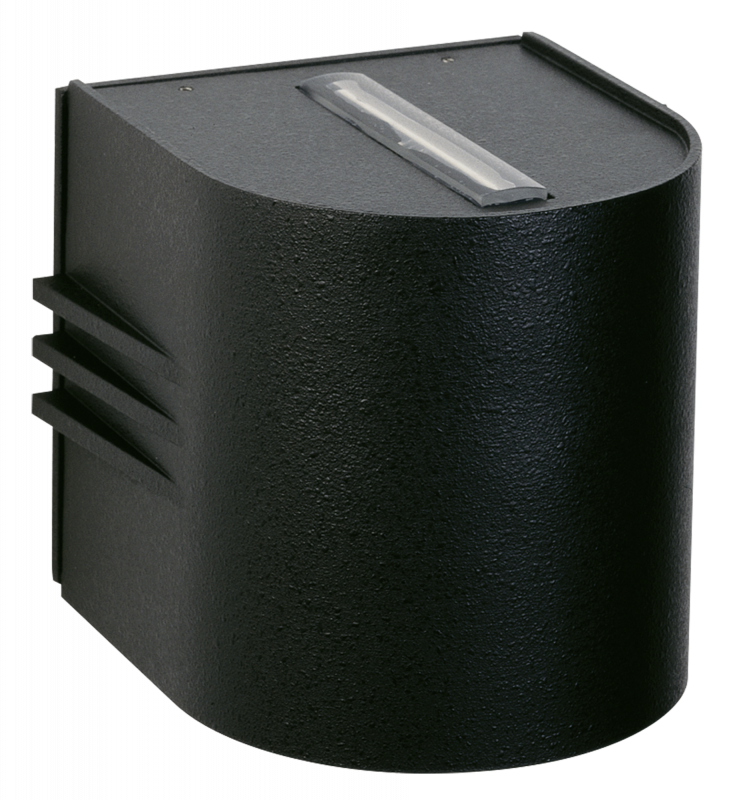

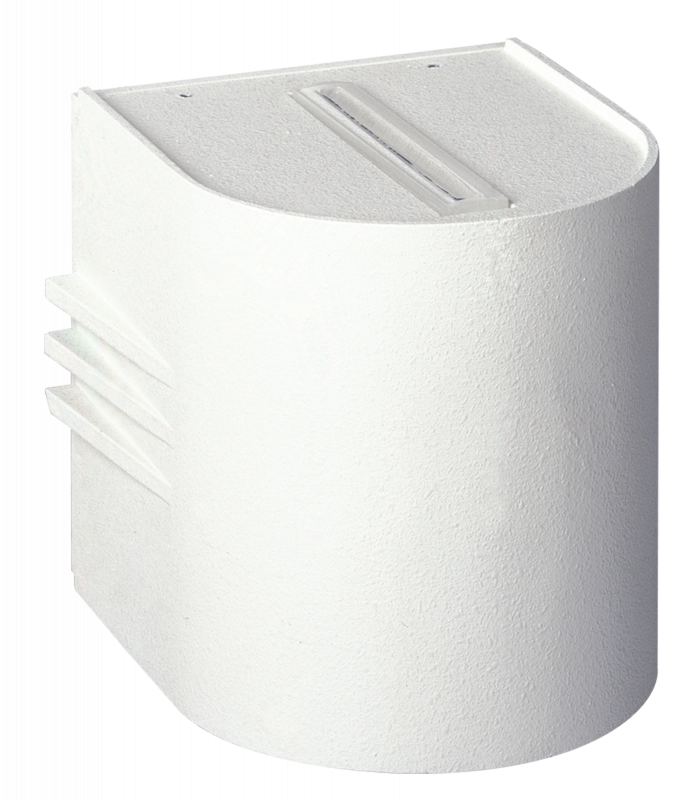

Wall floodlight

type ..2185

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
100 W
Material cover
Glass transparent
Weight N/A
Adjustability

Not adjustable

Suitable for number of lamps

1

Width

140 mm

Type of control gear

Not required

Suitable for pedestal/floor mounting

Yes

Surface protection

Lacquered

Beam angle

Medium beam 21-40°

Power factor

1

Dimming manufacturer's proprietary system

Yes

Voltage type

AC/DC

Light distributor

Focal lens

Suitable for ceiling mounting

No, Yes

Conductor cross section

2.5 mm²

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Nominal voltage

230 V

Light output

Direct/indirect

Connectable conductor cross section

0.75 – 2.5 mm²

No dim function

Yes

Length

160 mm

Type of wiring

Ending

Light sharing

Symmetric

Height/depth

150 mm

Suitable for surface mounting

Yes

Max. system power

100 W

Number of poles

3

Connection type

Screwed terminal

Degree of protection (IP)

IP44

Light output

2-seitig

Luminous flux

0 – 3000 lm

Mounting Type

Decke

Height

< 700 mm

Suitable for wall mounting

Yes

Protection class

I

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

Dimming phase cut-off

Yes

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

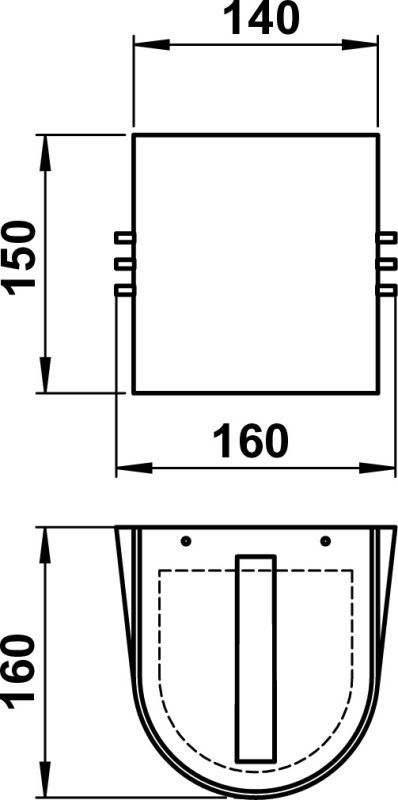

Dimensioned drawing
PDF | 107 KB
Light distribution curve - Eulumdat/LDT
LDT | 18 KB
Offertext
For: 662185
TXT | 288 B
Offertext
For: 682185
TXT | 249 B
Offertext
For: 692185
TXT | 226 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220342 - G 342, prism glass, borosilicate show
