Data sheet
Article number
Select a color, please

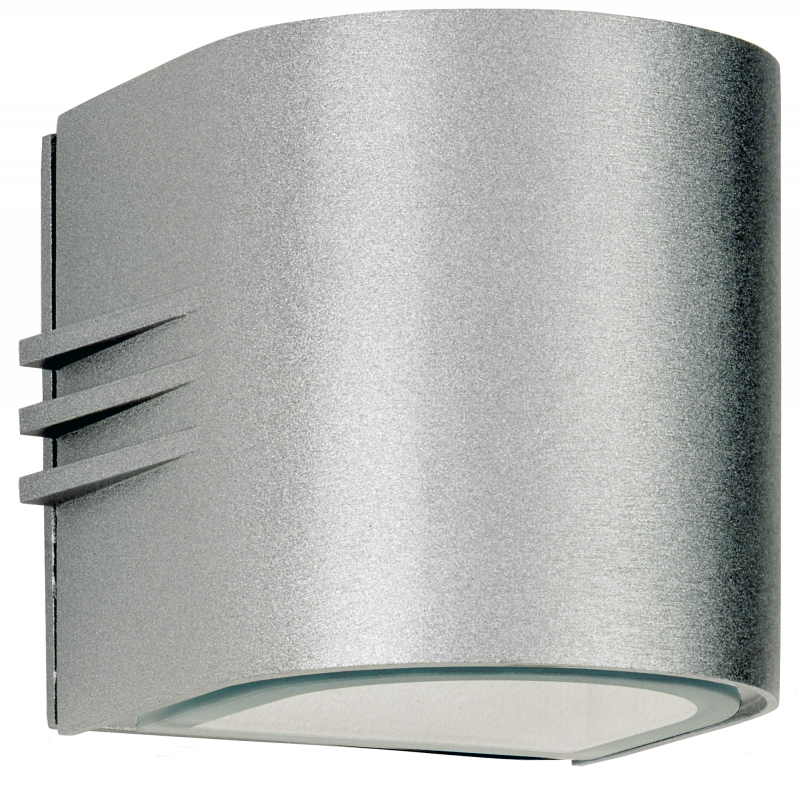

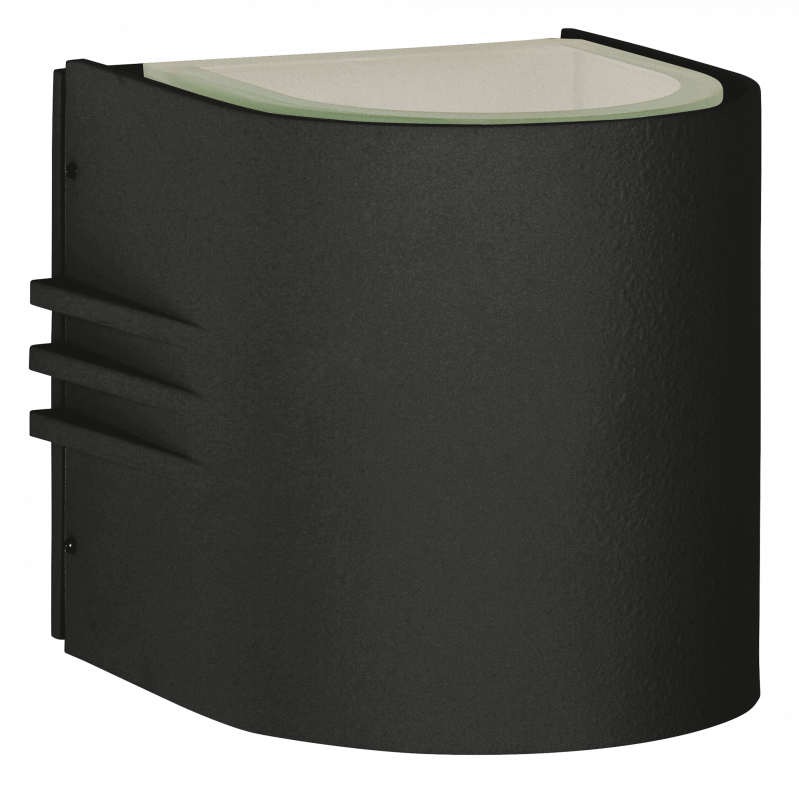

Wall floodlight
type ..2187
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
R7s
Suitable for lamp power
100 W
Material cover
Glass transparent
Documents and files
Assembly instruction

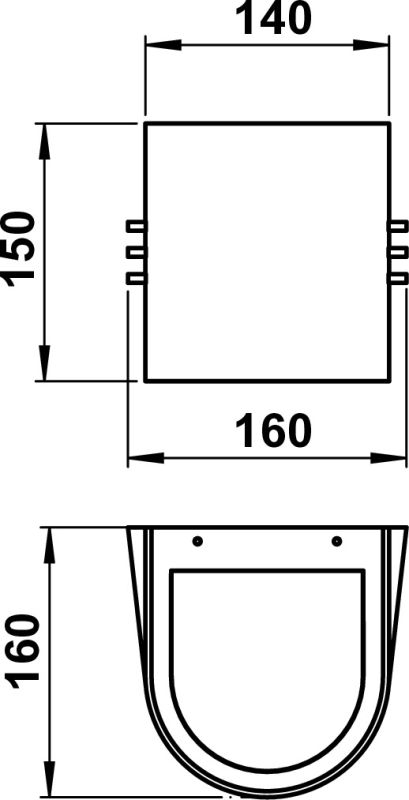

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662187
Offertext
For: 682187
Offertext
For: 692187
Full catalog 21 / 22
Spare parts
| 90220343 - G 343, single-pane safety glass | show |
Additional information
| Weight | N/A |
|---|---|
| Height/depth | 150 mm |
| Dimming manufacturer's proprietary system | Yes |
| Adjustability | Not adjustable |
| Colour housing | Black, Silver, White |
| Material housing | Aluminium |
| Suitable for number of lamps | 1 |
| Type of control gear | Not required |
| Surface protection | Lacquered |
| Beam angle | Medium beam 21-40° |
| Lamp holder | R7s |
| Suitable for pedestal/floor mounting | Yes |
| Nominal voltage | 230 V |
| Material cover | Glass transparent |
| Lamp type | HV halogen lamp |
| Voltage type | AC/DC |
| Conductor cross section | 2.5 mm² |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Power factor | 1 |
| Light output | Direct/indirect |
| Suitable for surface mounting | Yes |
| Width | 140 mm |
| No dim function | Yes |
| Type of wiring | Ending |
| Suitable for lamp power | 100 W |
| Light sharing | Symmetric |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Degree of protection (IP) | IP44 |
| Max. system power | 100 W |
| Number of poles | 3 |
| Connection type | Screwed terminal |
| Length | 160 mm |
| Dimming phase cut-off | Yes |
| Light output | 2-seitig |
| Luminous flux | 0 – 3000 lm |
| Height | < 700 mm |
| Suitable for wall mounting | Yes |
| Protection class | I |
| Beam angle adjustable | Continuously variable |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
