Article number Select a color, please

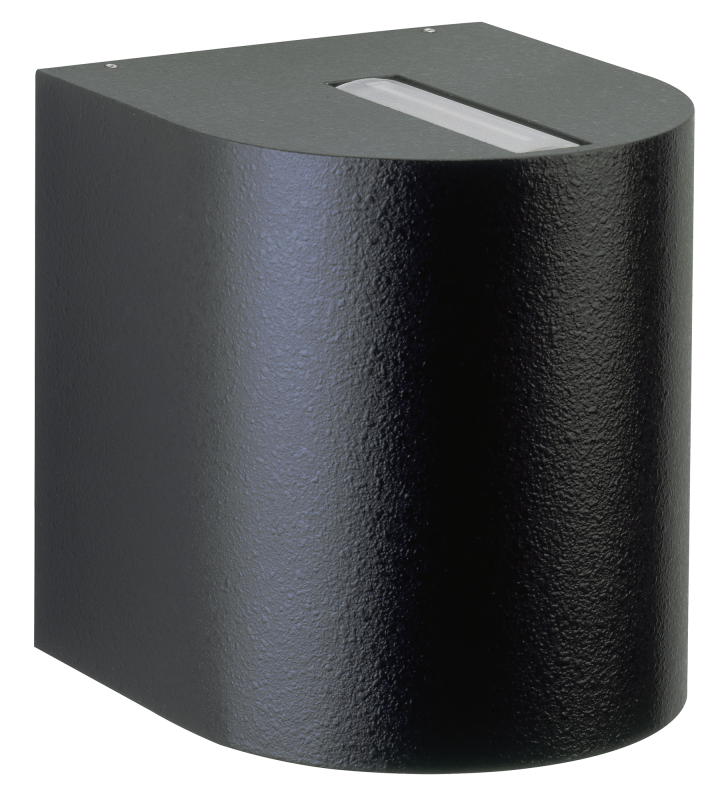

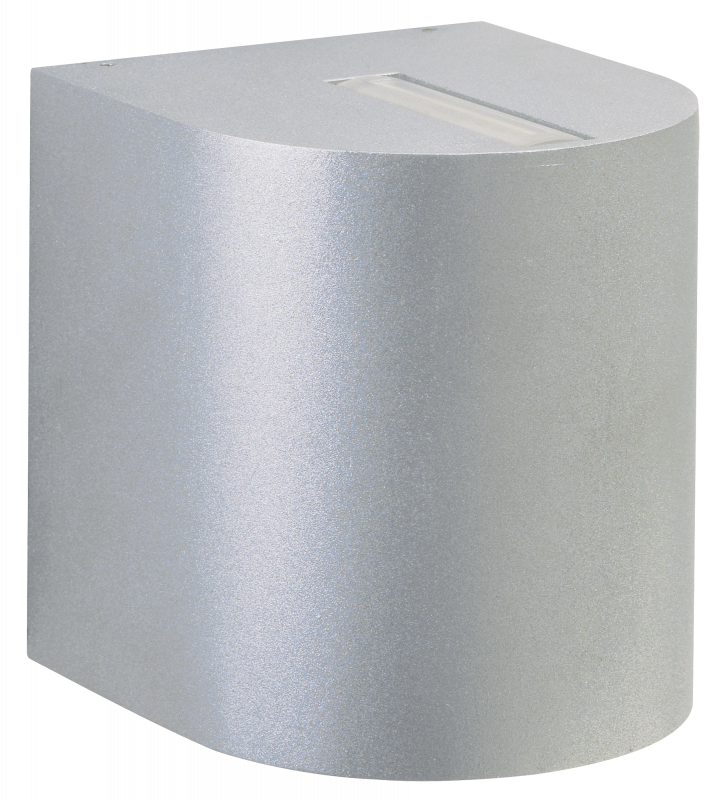

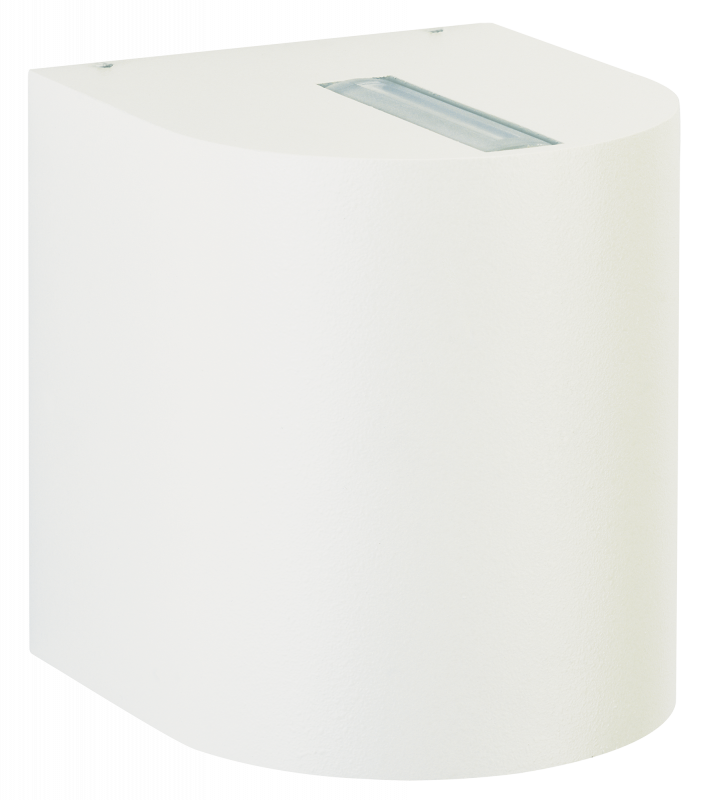

Wall floodlight

type ..2301

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662301
Offertext
For: 682301
Offertext
For: 692301
Full catalog 21 / 22
Spare parts
90220336 - G 336, half-oval pane ESG
Für: 682301
show
90220337 - G 337, prism glass, borosilicate
Für: 662301, 692301
show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Voltage type

AC

Suitable for pedestal/floor mounting

Yes

Nominal voltage

230 V

With control gear

Yes

Lamp type

Metal halide lamp

Adjustability

Not adjustable

Suitable for number of lamps

1

Lamp holder

G8.5

Material housing

Aluminium

Type of control gear

Electronic ballast

Connection type

Screwed terminal

Light sharing

Symmetric

Colour housing

Black, Silver, White

Material cover

Glass transparent

Max. system power

35 W

Width

140 mm

Surface protection

Lacquered

Beam angle adjustable

Continuously variable

Degree of protection (IP)

IP44

Unified Glare Ratio (UGR)

1

Light output

Direct/indirect

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Height/depth

150 mm

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Beam angle

Medium beam 21-40°

Connectable conductor cross section

0.75 – 2.5 mm²

Light output

2-seitig

Exchangeable control gear

Yes

Luminous flux

3500 lm

Light distributor

Focal lens

No dim function

Yes

Suitable for lamp power

35 W

Suitable for wall mounting

Yes

Length

155 mm

Power factor

0.9

Height

< 700 mm

Shape

Eckig
