Article number Select a color, please

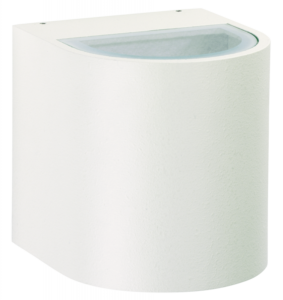

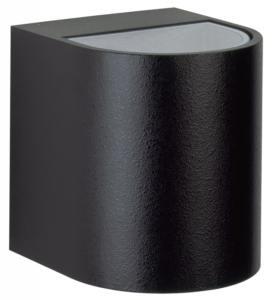

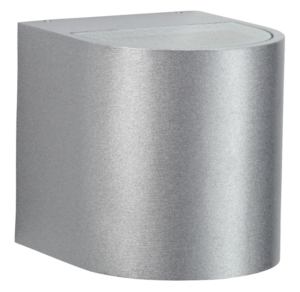

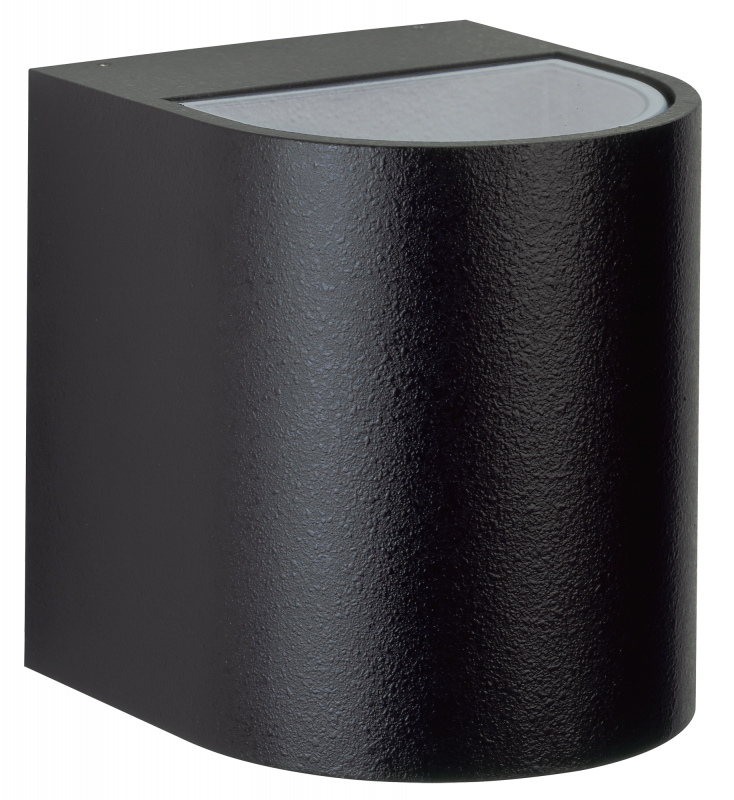

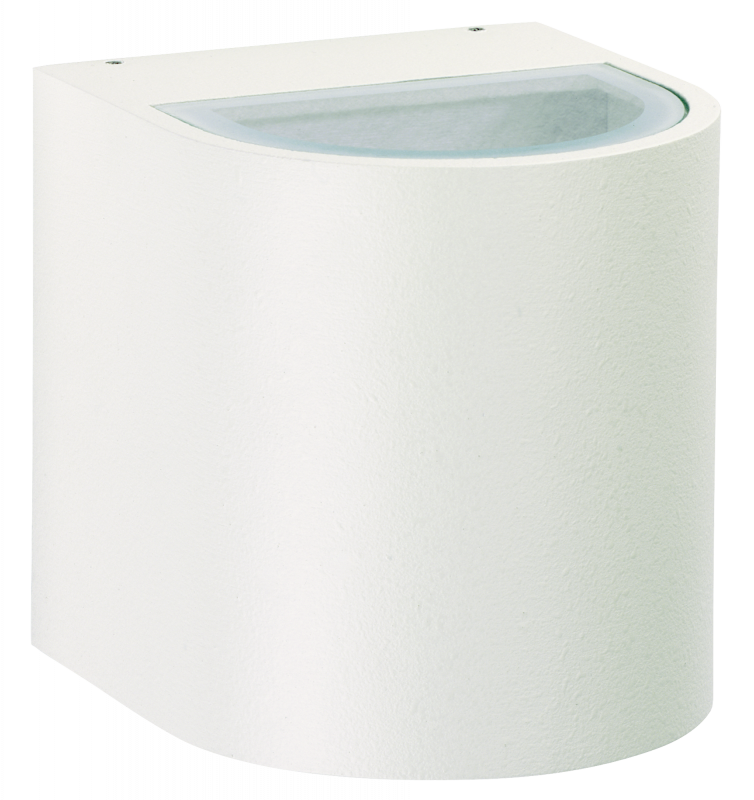

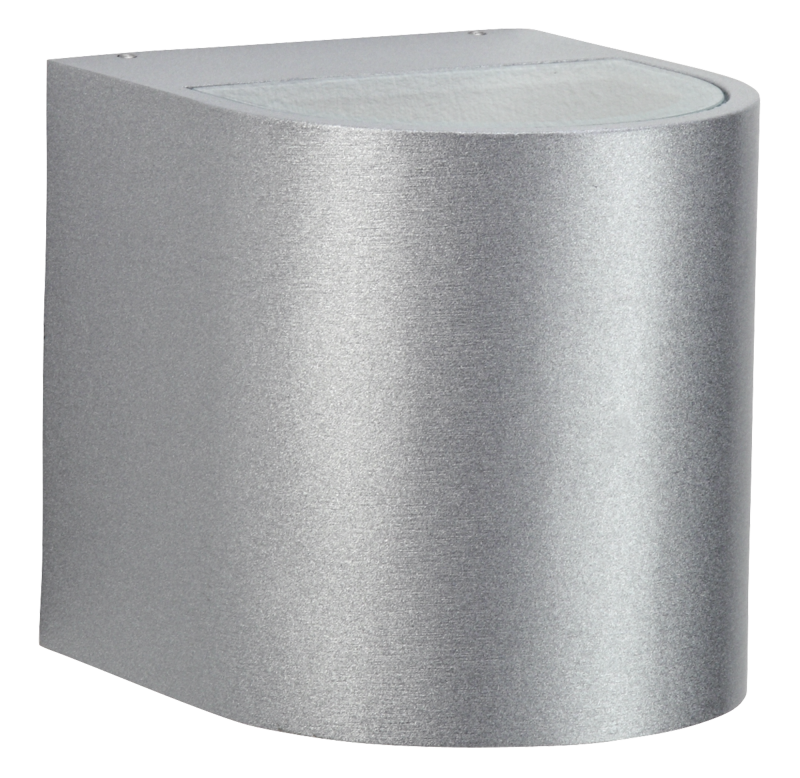

Wall floodlight

type ..2302

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Documents and files
Assembly instruction
Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662302
Offertext
For: 682302
Offertext
For: 692302
Full catalog 21 / 22
Spare parts
90220336 - G 336, half-oval pane ESG show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Suitable for pedestal/floor mounting

Yes

Colour housing

Black, Silver, White

Lamp type

Metal halide lamp

Adjustability

Not adjustable

Suitable for number of lamps

1

Lamp holder

G8.5

Material housing

Aluminium

Connection type

Screwed terminal

Light sharing

Symmetric

Material cover

Glass transparent

Max. system power

35 W

Width

140 mm

Surface protection

Lacquered

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Electronic ballast

With control gear

Yes

Length

155 mm

Light output

Direct/indirect

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Height/depth

150 mm

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Luminous flux

3500 lm

Beam angle

Medium beam 21-40°

Connectable conductor cross section

0.75 – 2.5 mm²

Light output

2-seitig

Suitable for lamp power

35 W

Beam angle adjustable

Continuously variable

Power factor

0.9

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Degree of protection (IP)

IP44

No dim function

Yes

Unified Glare Ratio (UGR)

1

Shape

Eckig
