Article number 692304

Wall floodlight

type ..2304

This product is no longer in our assortment.

Nicht lieferbar

Specifications

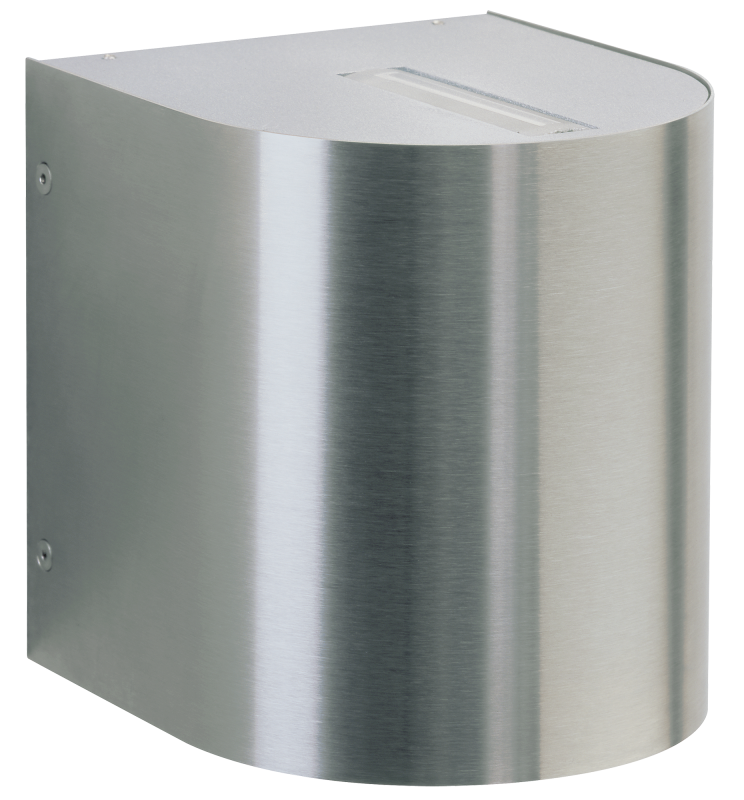

Albert wall spotlight 692304
with 2-sided light emission, narrow at the top and wide at the bottom, made of stainless steel with borosilicate glass and lens optics. Cast aluminium mounting plateInstalled for 1 x HIT-TC-CE 35W, socket G8.5Protection class IP 44 – protection class : 155 x 140 x 155 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Weight 2,80 kg
Suitable for wall mounting

Yes

Suitable for pedestal/floor mounting

Yes

Type of control gear

Electronic ballast

Nominal voltage

230 V

Suitable for number of lamps

1

Surface brushed

Yes

Voltage type

AC

With control gear

Yes

Type of wiring

Ending

Light sharing

Symmetric

Width

140 mm

No dim function

Yes

Adjustability

Not adjustable

Light distributor

Focal lens

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Degree of protection (IP)

IP44

Light output

Direct/indirect

Beam angle adjustable

Continuously variable

Light output

2-seitig

Number of poles

3

Height

< 700 mm

Connectable conductor cross section

0.75 – 2.5 mm²

Luminous flux

3500 lm

Height/depth

155 mm

Suitable for surface mounting

Yes

Power factor

0.9

Conductor cross section

2.5 mm²

Beam angle

Medium beam 21-40°

Length

155 mm

Max. system power

35 W

Connection type

Screwed terminal

Exchangeable control gear

Yes

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 32 KB
Dimensioned drawing
PDF | 12 KB
Light distribution curve - Eulumdat/LDT
LDT | 18 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220337 - G 337, prism glass, borosilicate show
