Article number Select a color, please

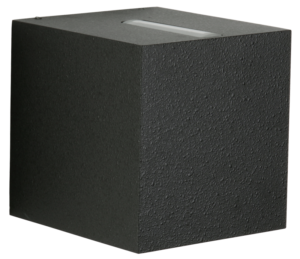

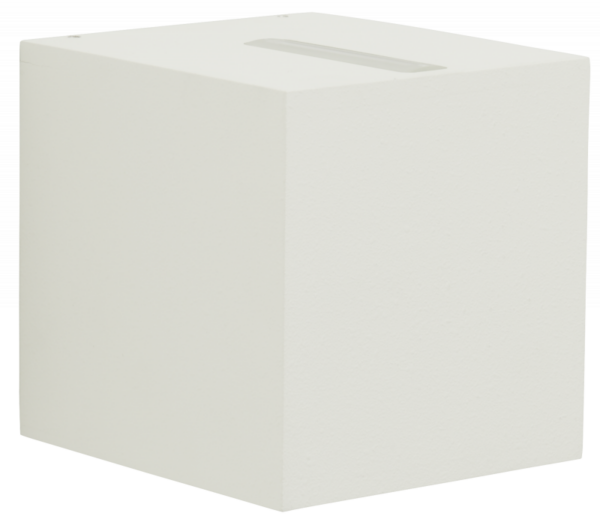

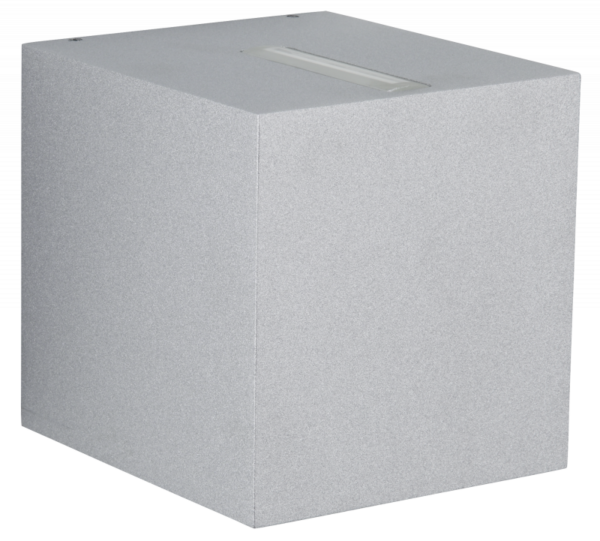

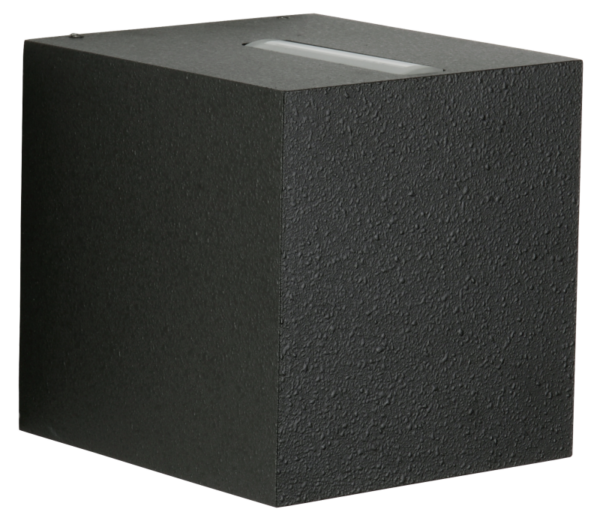

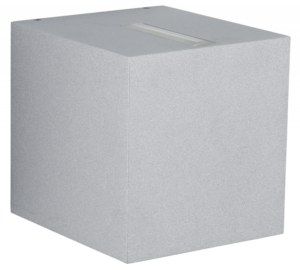

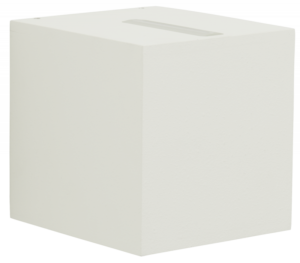

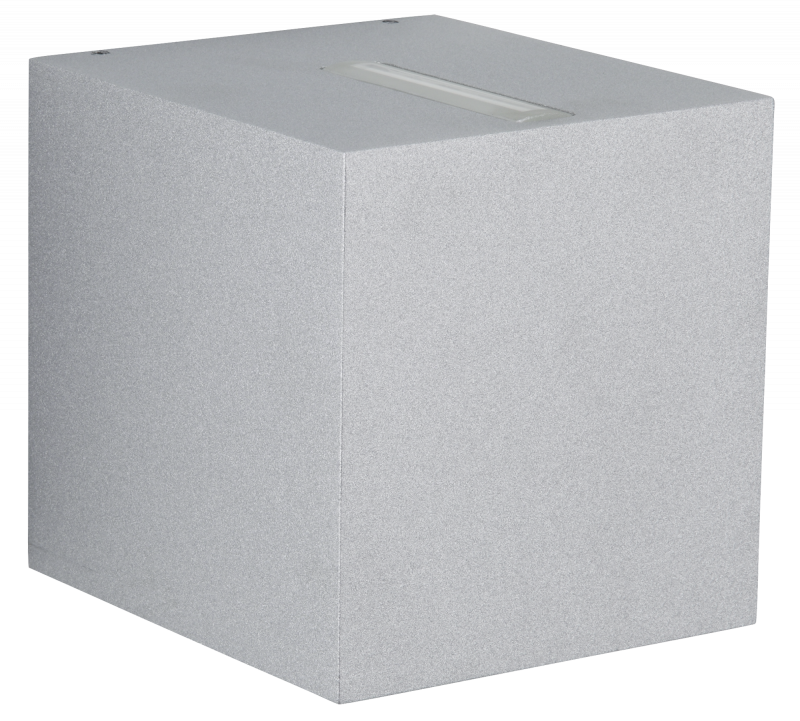

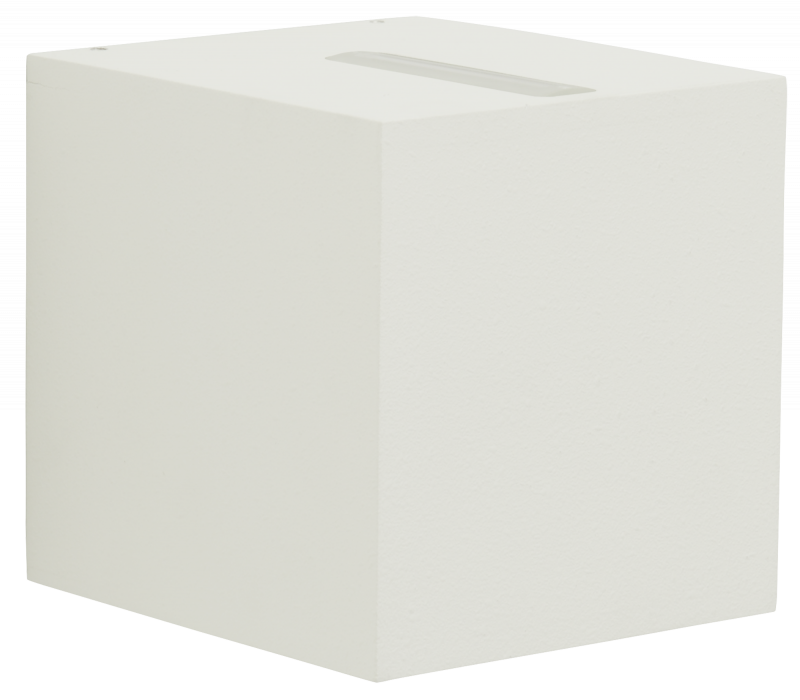

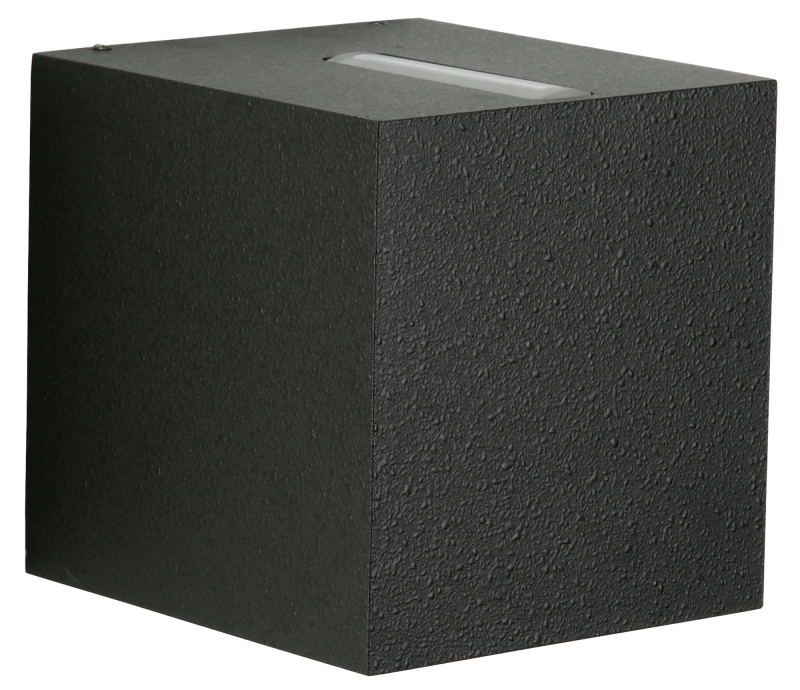

Wall floodlight

type ..2310

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Documents and files
Assembly instruction

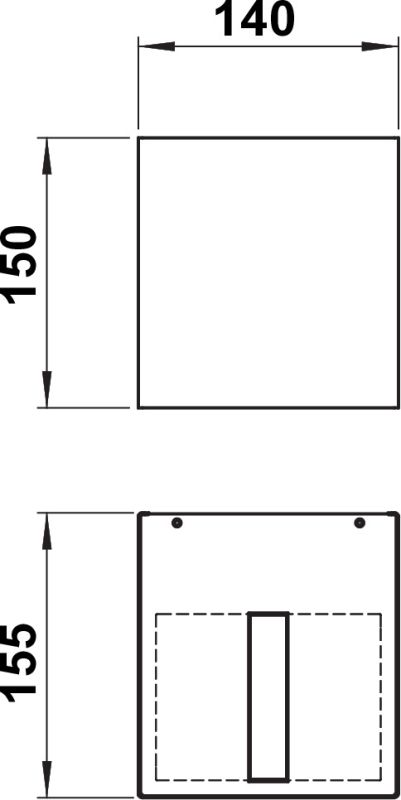

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662310
Offertext
For: 682310
Offertext
For: 692310
Full catalog 21 / 22
Spare parts
90220337 - G 337, prism glass, borosilicate show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Nominal voltage

230 V

Suitable for pedestal/floor mounting

Yes

Type of control gear

Electronic ballast

Lamp type

Metal halide lamp

Suitable for number of lamps

1

Lamp holder

G8.5

Material housing

Aluminium

With control gear

Yes

Connection type

Screwed terminal

Light sharing

Symmetric

Suitable for lamp power

35 W

Colour housing

Black, Silver, White

Adjustability

Not adjustable

Material cover

Glass transparent

Light distributor

Focal lens

Width

140 mm

Surface protection

Lacquered

Voltage type

AC

Light output

Direct/indirect

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Height/depth

150 mm

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Exchangeable control gear

Yes

Degree of protection (IP)

IP44

Beam angle

Medium beam 21-40°

Connectable conductor cross section

0.75 – 2.5 mm²

Light output

2-seitig

Suitable for wall mounting

Yes

Beam angle adjustable

Continuously variable

Unified Glare Ratio (UGR)

1

No dim function

Yes

Luminous flux

3500 lm

Height

< 700 mm

Max. system power

35 W

Length

155 mm

Power factor

0.9

Shape

Eckig
