Article number 692312

Wall floodlight

type ..2312

This product is no longer in our assortment.

Nicht lieferbar

Specifications

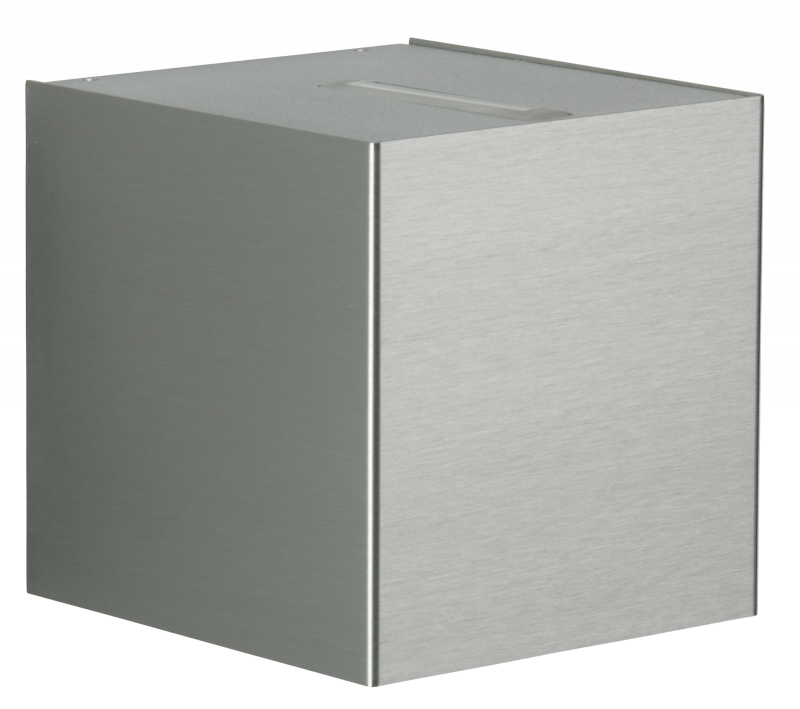

Albert wall spotlight 692312
with 2-sided light emission, narrow at top and bottom, made of stainless steel with lens optics. Cast aluminium mounting plateInstalled for 1 x HIT-TC-CE 35W, socket G8.5Protection class IP 44 – protection class : 140 x 155 x 150 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Weight 3,30 kg
Suitable for wall mounting

Yes

Suitable for pedestal/floor mounting

Yes

Width

140 mm

No dim function

Yes

Suitable for number of lamps

1

Surface brushed

Yes

Light sharing

Symmetric

Adjustability

Not adjustable

Light distributor

Focal lens

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Electronic ballast

With control gear

Yes

Type of wiring

Ending

Connectable conductor cross section

0.75 – 2.5 mm²

Power factor

0.9

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Degree of protection (IP)

IP44

Light output

Direct/indirect

Suitable for surface mounting

Yes

Conductor cross section

2.5 mm²

Beam angle

Medium beam 21-40°

Light output

2-seitig

Number of poles

3

Height/depth

150 mm

Length

155 mm

Max. system power

35 W

Connection type

Screwed terminal

Exchangeable control gear

Yes

Unified Glare Ratio (UGR)

1

Beam angle adjustable

Continuously variable

Height

< 700 mm

Luminous flux

3500 lm

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 30 KB

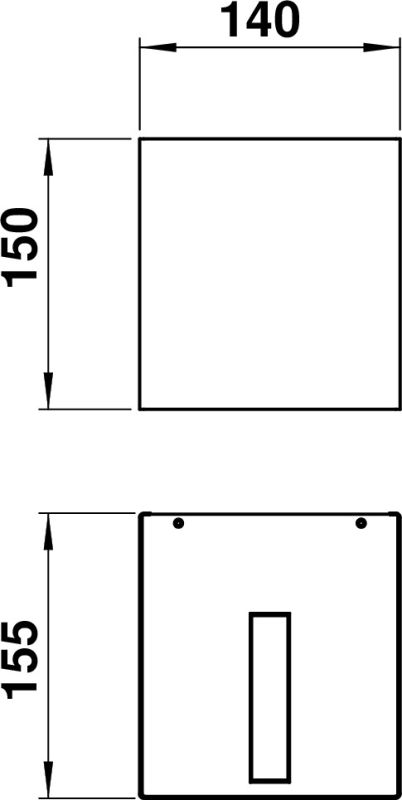

Dimensioned drawing
PDF | 24 KB
Light distribution curve - Eulumdat/LDT
LDT | 4 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220337 - G 337, prism glass, borosilicate show
