Article number 692313

Wall floodlight

type ..2313

This product is no longer in our assortment.

Nicht lieferbar

Description

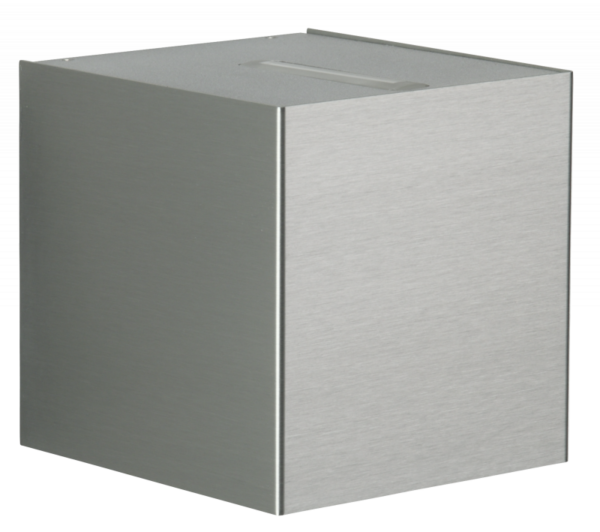

Albert wall spotlight 692313
with 2-sided light emission, narrow at the top and wide at the bottom, made of stainless steel with safety glass and lens optics. Cast aluminium mounting plateInstalled for 1 x HIT-TC-CE 35W, socket G8.5Protection class IP 44 – protection class : 140 x 155 x 150 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Documents and files
Assembly instruction

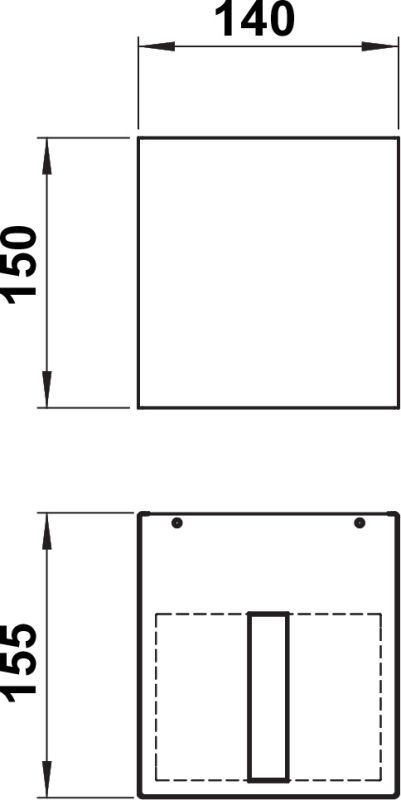

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220337 - G 337, prism glass, borosilicate show

Additional information

Weight 3,10 kg
Suitable for wall mounting

Yes

Suitable for pedestal/floor mounting

Yes

Adjustability

Not adjustable

Light distributor

Focal lens

Colour housing

Stainless steel

Lamp type

Metal halide lamp

Suitable for number of lamps

1

Lamp holder

G8.5

Material housing

Stainless steel

Surface brushed

Yes

Width

140 mm

Material cover

Glass transparent

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Electronic ballast

With control gear

Yes

Suitable for lamp power

35 W

Type of wiring

Ending

Light sharing

Symmetric

No dim function

Yes

Suitable for surface mounting

Yes

Luminous flux

3500 lm

Beam angle

Medium beam 21-40°

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Degree of protection (IP)

IP44

Light output

Direct/indirect

Height/depth

150 mm

Light output

2-seitig

Number of poles

3

Conductor cross section

2.5 mm²

Power factor

0.9

Exchangeable control gear

Yes

Connectable conductor cross section

0.75 – 2.5 mm²

Length

155 mm

Max. system power

35 W

Connection type

Screwed terminal

Unified Glare Ratio (UGR)

1

Beam angle adjustable

Continuously variable

Height

< 700 mm

Shape

Eckig
