Article number 692314

Wall floodlight

type ..2314

This product is no longer in our assortment.

Nicht lieferbar

Description

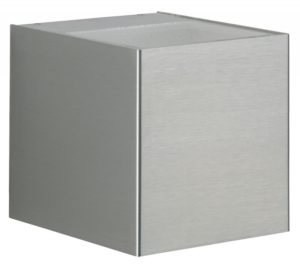

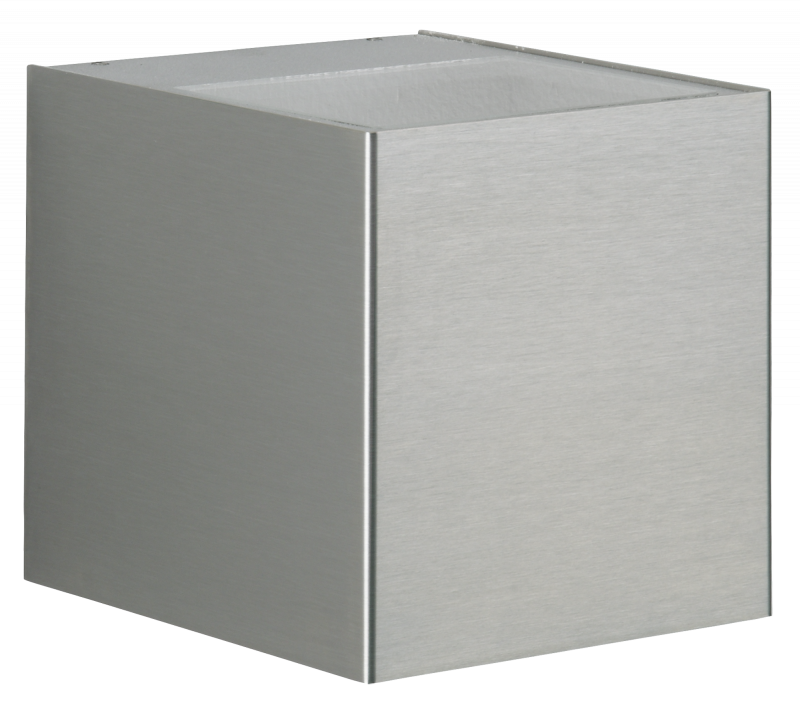

Albert wall spotlight 692314
with 2-sided light emission, wide at the top and wide at the bottom, made of stainless steel with clear safety glass. Cast aluminium mounting plateInstalled for 1 x HIT-TC-CE 35W, socket G8.5Protection class IP 44 – protection class : 140 x 155 x 150 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Metal halide lamp
Lamp holder
G8.5
Suitable for lamp power
35 W
Material cover
Glass transparent
Documents and files
Assembly instruction

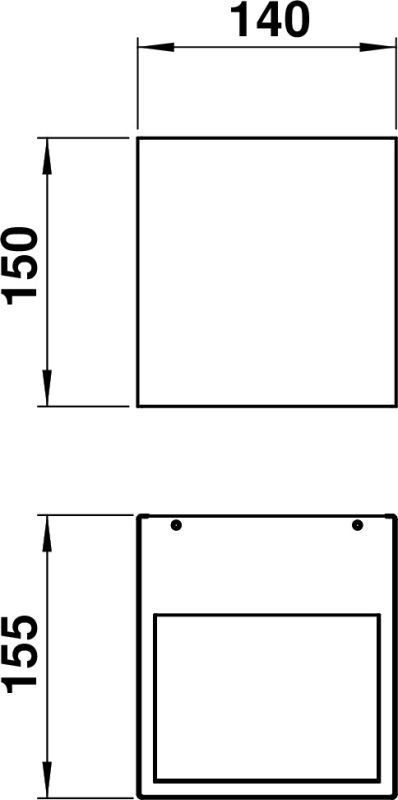

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90220437 - G 437, toughened safety glass show

Additional information

Weight 2,90 kg
Suitable for wall mounting

Yes

Suitable for pedestal/floor mounting

Yes

Width

140 mm

No dim function

Yes

Lamp type

Metal halide lamp

Suitable for number of lamps

1

Lamp holder

G8.5

Material housing

Stainless steel

Surface brushed

Yes

Light sharing

Symmetric

Material cover

Glass transparent

Adjustability

Not adjustable

Colour housing

Stainless steel

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Electronic ballast

With control gear

Yes

Suitable for lamp power

35 W

Type of wiring

Ending

Connectable conductor cross section

0.75 – 2.5 mm²

Power factor

0.9

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Degree of protection (IP)

IP44

Light output

Direct/indirect

Suitable for surface mounting

Yes

Conductor cross section

2.5 mm²

Beam angle

Medium beam 21-40°

Light output

2-seitig

Number of poles

3

Height/depth

150 mm

Length

155 mm

Max. system power

35 W

Connection type

Screwed terminal

Exchangeable control gear

Yes

Unified Glare Ratio (UGR)

1

Beam angle adjustable

Continuously variable

Height

< 700 mm

Luminous flux

3500 lm

Shape

Eckig
