Article number Select a color, please

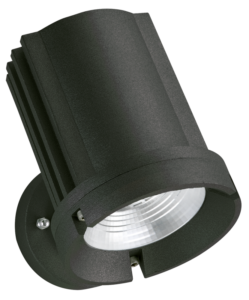

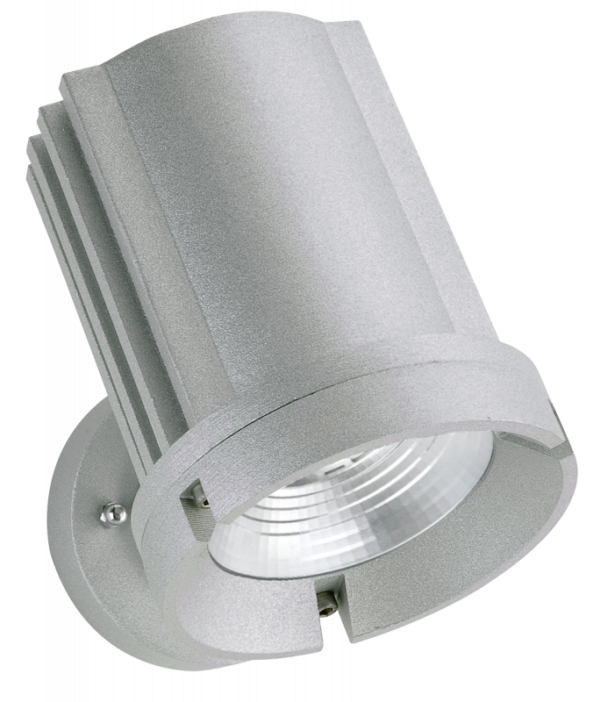

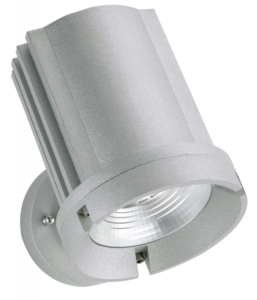

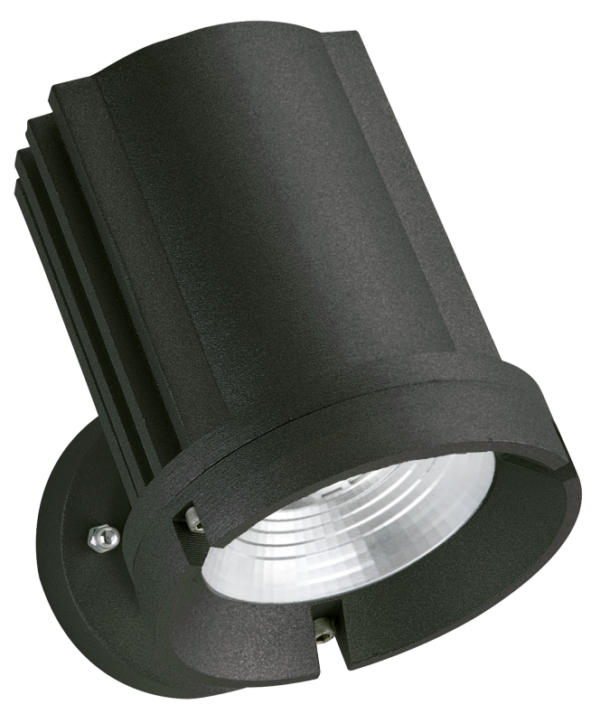

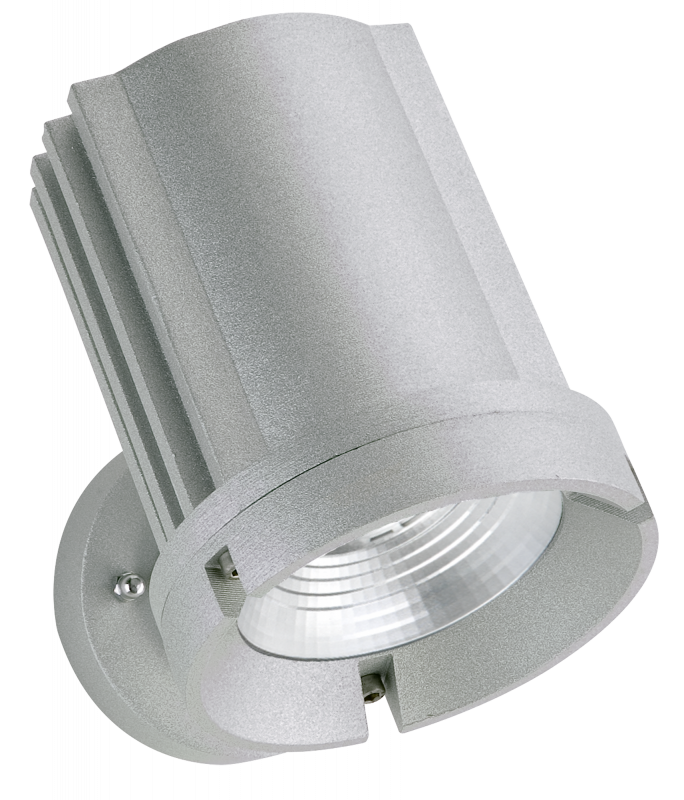

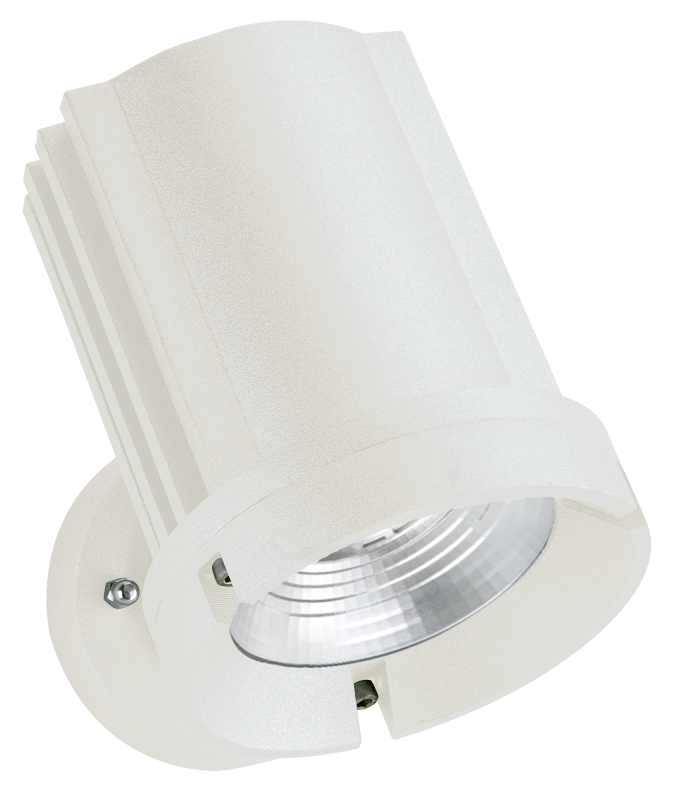

Wall floodlight

type ..2420

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

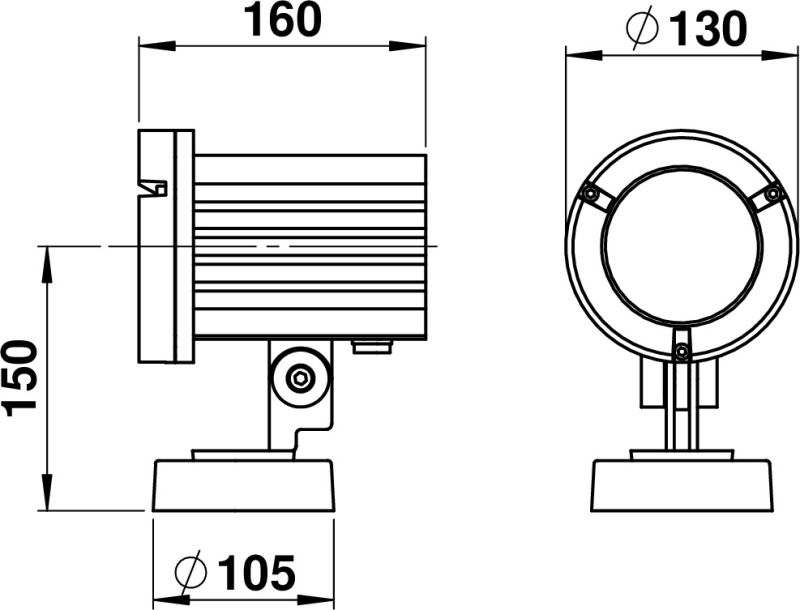

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662420
Offertext
For: 682420
Offertext
For: 692420
Full catalog 21 / 22
Spare parts
90220111 - G 111, ESG glass show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 662420
show
681005 - Corner bracket round type ..1005, White
Für: 682420
show
691005 - Corner bracket round type ..1005, Stainless steel
Für: 692420
show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Reflector

High-gloss

Material cover

Glass transparent

Adjustability

Rotating and swivelling

Lamp type

LED exchangeable

With light source

Yes

Suitable for ceiling mounting

Yes

Outer diameter

130 mm

Type of control gear

LED operating device voltage-controlled

Colour rendering index CRI

80-89

Voltage type

AC

Suitable for pedestal/floor mounting

Yes

Suitable for lamp power

12 W

Dimming phase cut-off

Yes

Surface protection

Lacquered

Nominal voltage

230 V

Colour housing

Black, Silver, White

Material housing

Aluminium

With control gear

Yes

Degree of protection (IP)

IP54

Max. system power

12 W

Light sharing

Symmetric

No dim function

Yes

Luminous flux

1200 lm

Colour temperature

3000 K

Energy efficiency class of the provided exchangeable built-in lamp

E

Number of poles

3

Light outlet

Direct

Protection class

I

Rated luminous flux according to IEC 62722-2-1

1200 lm

Length

160 mm

Type of wiring

Ending

Colour of light

White

Suitable for number of lamps

1

Beam angle

Medium beam 21-40°

Power factor

0.9

Conductor cross section

2.5 mm²

Connectable conductor cross section

0.75 – 2.5 mm²

Connection type

Screwed terminal

Height/depth

150 mm

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Mounting method

Decke

Light outlet

1-seitig

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Flickering value Pst LM

1

Colour consistency (McAdam ellipse)

SDCM3

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Shape

Eckig
