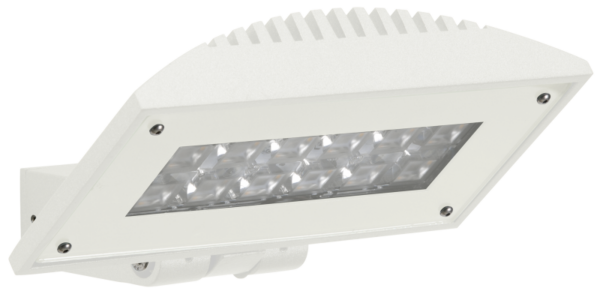

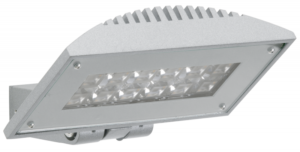

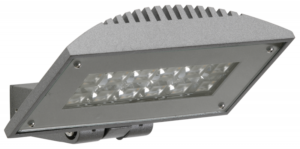

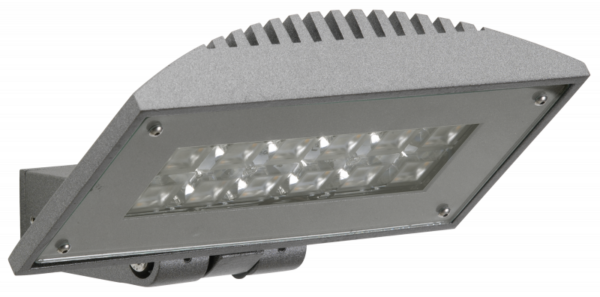

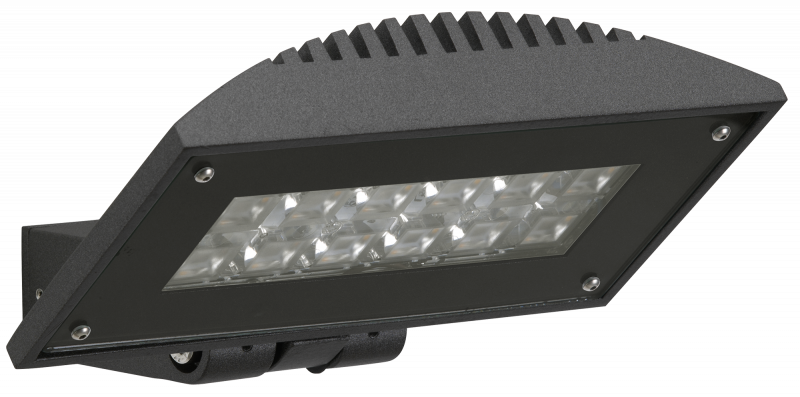

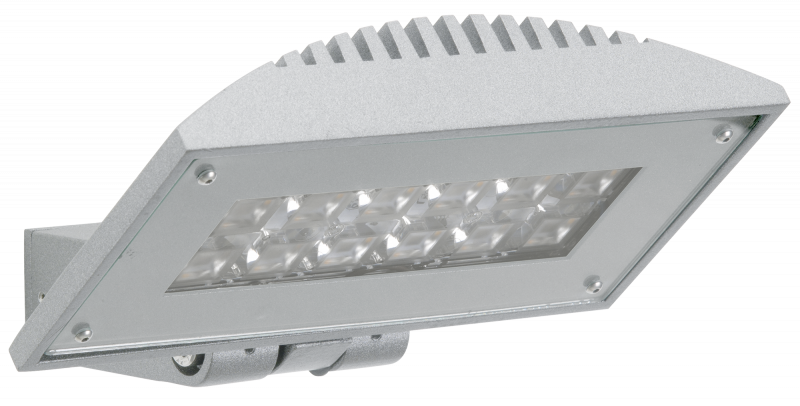

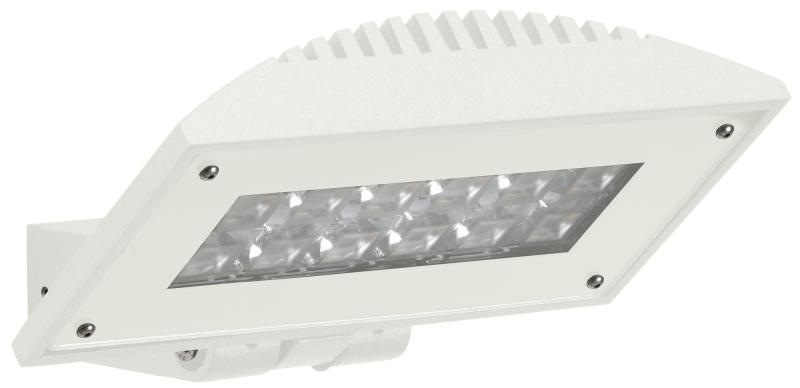

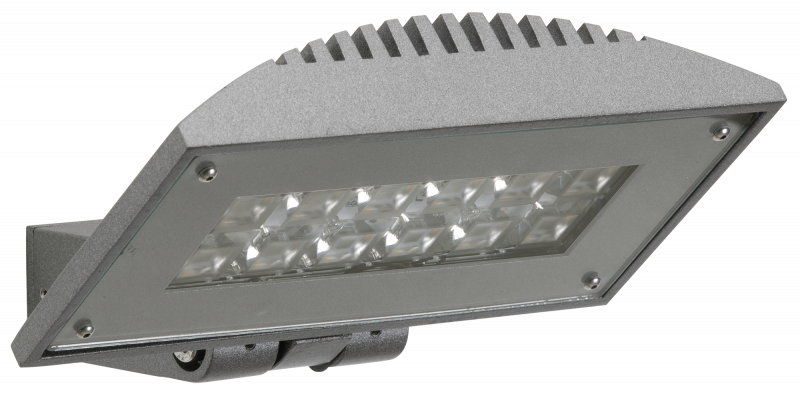

Wall floodlight

type ..2427

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Rotatable lamp Product-Icon The luminaire body can be rotated.
The luminaire body can be rotated.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
13 W
Rated luminous flux according to IEC 62722-2-1
1250 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Suitable for ceiling mounting

Yes

Nominal voltage

230 V

With control gear

Yes

Adjustability

Rotating and swivelling

Suitable for pedestal/floor mounting

Yes

Type of control gear

LED operating device voltage-controlled

Width

220 mm

Voltage type

AC

Surface protection

Lacquered

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Max. system power

13 W

Colour of light

White

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP54

Height/depth

40 mm

No dim function

Yes

Length

215 mm

Colour rendering index CRI

80-89

Light output

Direct

Number of poles

3

Power factor

0.9

Protection class

I

Light output

1-seitig

Colour consistency (McAdam ellipse)

SDCM3

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Beam angle

Medium beam 21-40°

Luminous flux

1250 lm

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Light sharing

Symmetric

Type of wiring

Ending

Mounting Type

Decke

Height

< 700 mm

Suitable for wall mounting

Yes

Exchangeable control gear

Yes

Flickering value Pst LM

1

Beam angle adjustable

Continuously variable

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 30 KB

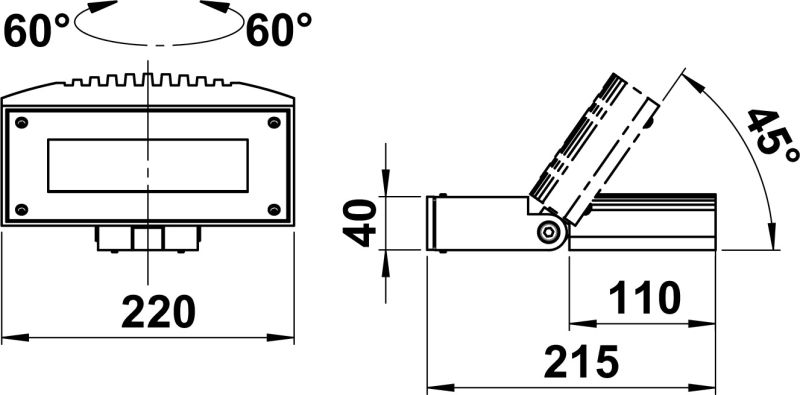

Dimensioned drawing
PDF | 110 KB
Light distribution curve - Eulumdat/LDT
LDT | 47 KB
Offertext
For: 622427
TXT | 227 B
Offertext
For: 662427
TXT | 222 B
Offertext
For: 682427
TXT | 222 B
Offertext
For: 692427
TXT | 199 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220484 - G 484, glass pane borosilicate show
