Data sheet
Article number
Select a color, please

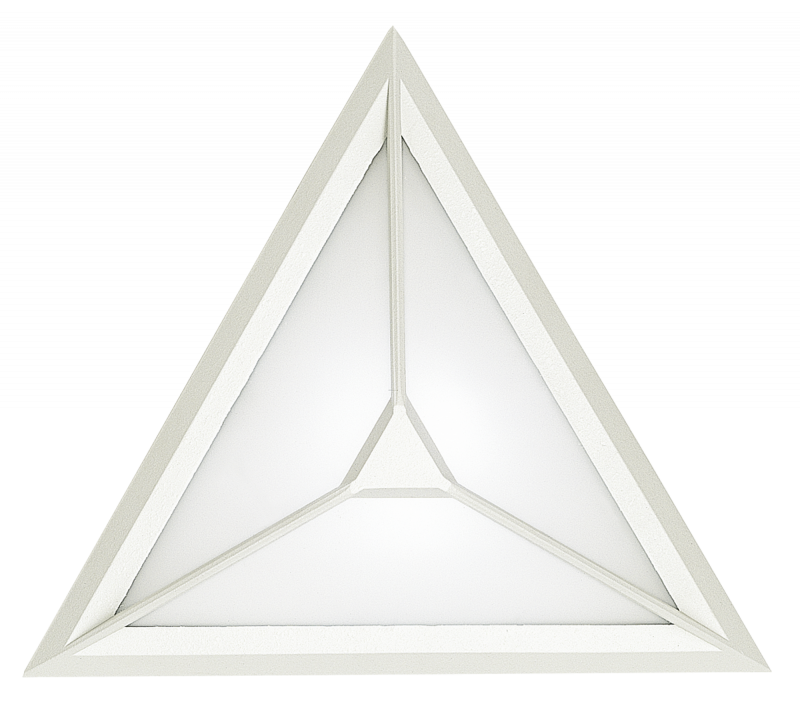

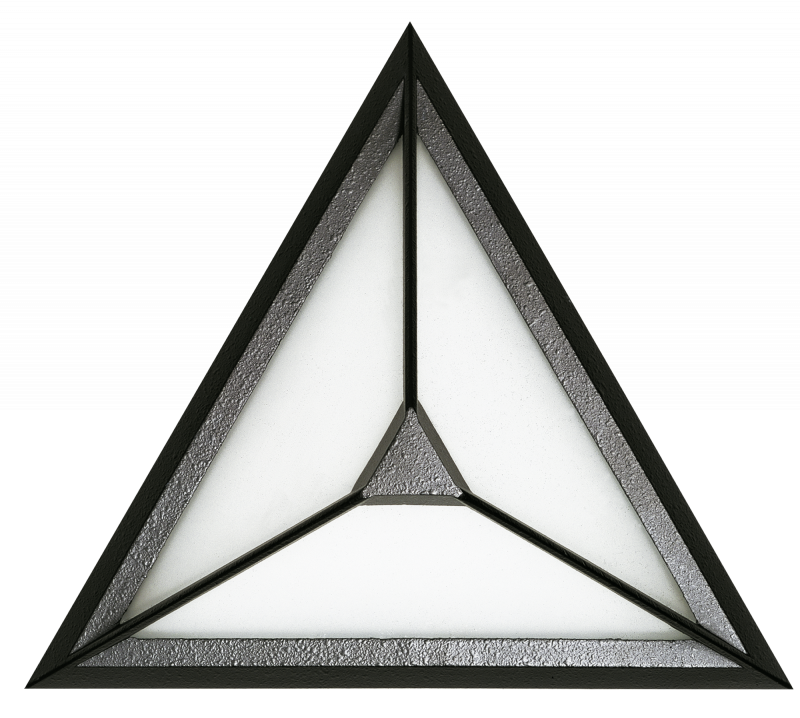

Wall lamp
type ..6040
€171,20
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Light outlet | 1-seitig |
| Mounting method | Wand |
| Shape | Eckig |
| Connection type | Screwed terminal |
| Degree of protection (IP) | IP44 |

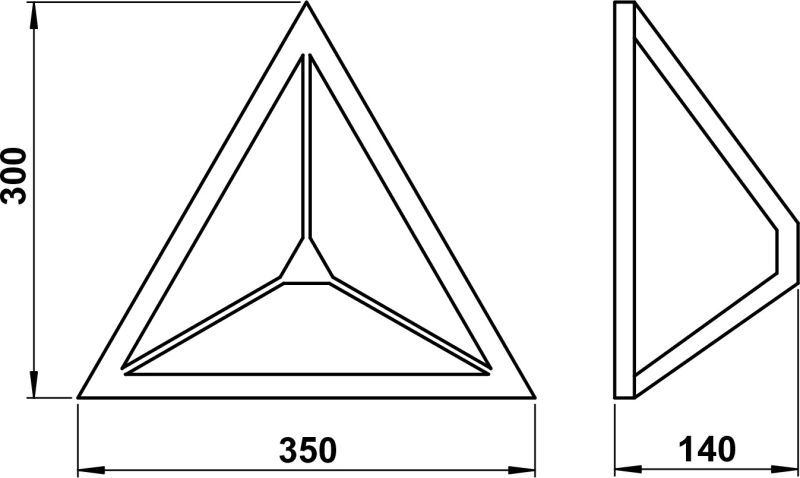

| Height | < 700 mm |
| Width | 350 mm |
| Light outlet | Direct |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Power factor | 1 |
| Beam angle | Open beam/diffuse |
| Max. system power | 75 W |
| Light type | Wandleuchte |
| No dim function | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Height/depth | 300 mm |
| Surface protection housing | Lacquered |
| Style | Modern |
| Type of wiring | Ending |
| Length | 140 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Dimming depending on control gear | Yes |
| Type of control gear | Not required |
| Suitable for number of lamps | 1 |
| Light sharing | Symmetric |
| Protection class | I |
| Suitable for surface mounting | Yes |
| Nominal voltage | 230 V |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Voltage type | AC |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
Documents and files
Additional information
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Light outlet | 1-seitig |
| Mounting method | Wand |
| Shape | Eckig |
| Connection type | Screwed terminal |
| Degree of protection (IP) | IP44 |
| Height | < 700 mm |
| Width | 350 mm |
| Light outlet | Direct |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Power factor | 1 |
| Beam angle | Open beam/diffuse |
| Max. system power | 75 W |
| Light type | Wandleuchte |
| No dim function | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Height/depth | 300 mm |
| Surface protection housing | Lacquered |
| Style | Modern |
| Type of wiring | Ending |
| Length | 140 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Dimming depending on control gear | Yes |
| Type of control gear | Not required |
| Suitable for number of lamps | 1 |
| Light sharing | Symmetric |
| Protection class | I |
| Suitable for surface mounting | Yes |
| Nominal voltage | 230 V |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Voltage type | AC |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
