Article number Select a color, please

Wall lamp

type ..6041

161,70

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

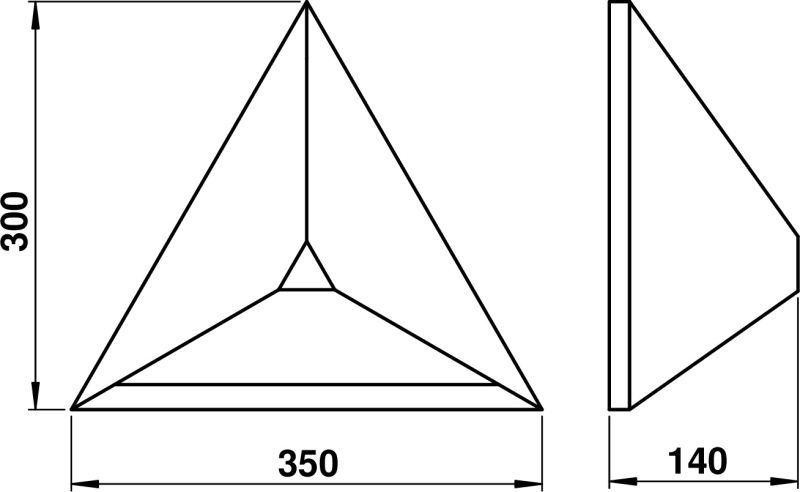

Dimensioned drawing
Light distribution curve
For: 666041
Light distribution curve
For: 686041
Offertext
For: 666041
Offertext
For: 686041
Full catalog 21 / 22
Spare parts
90210102 - G 102, opal glass matt show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Colour housing

Black, White

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Protection class

I

Light sharing

Symmetric

Suitable for number of lamps

1

Lamp holder

E27

Material cover

Glass opal

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Material housing

Aluminium

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

Conductor cross section

2.5 mm²

Dimming depending on control gear

Yes

No dim function

Yes

Max. system power

75 W

Beam angle

Open beam/diffuse

Power factor

1

Lowest energy efficiency class of the exchangeable lamp

A

Light output

Direct

Width

350 mm

Degree of protection (IP)

IP44

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Suitable for lamp power

1 – 75 W

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Height

< 700 mm

Height/depth

300 mm

Length

140 mm

Type of wiring

Ending

Style

Modern
