Article number 696165

Wall lamp

type ..6165

215,70

Description

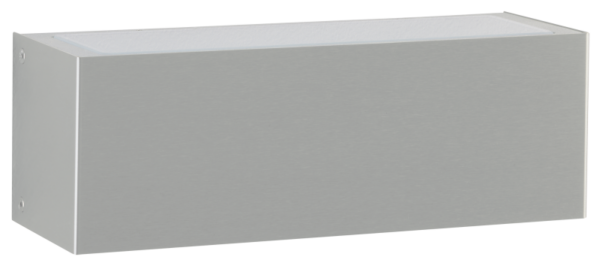

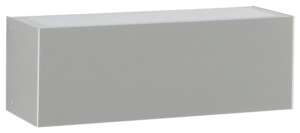

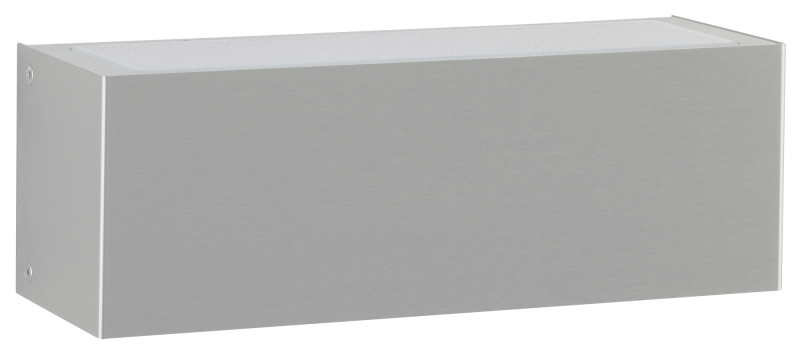

Albert wall lamp 696165
with 2-sided light emission, made of stainless steel with opal glass, mounting plate made of cast aluminium. Equipped for 1 x TC-D 26W, socket G24 d-3.protection class IP 44 – protection class : 105 x 300 x 105 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G24d-3
Suitable for lamp power
26 W
Material cover
Glass opal
Documents and files
Assembly instruction

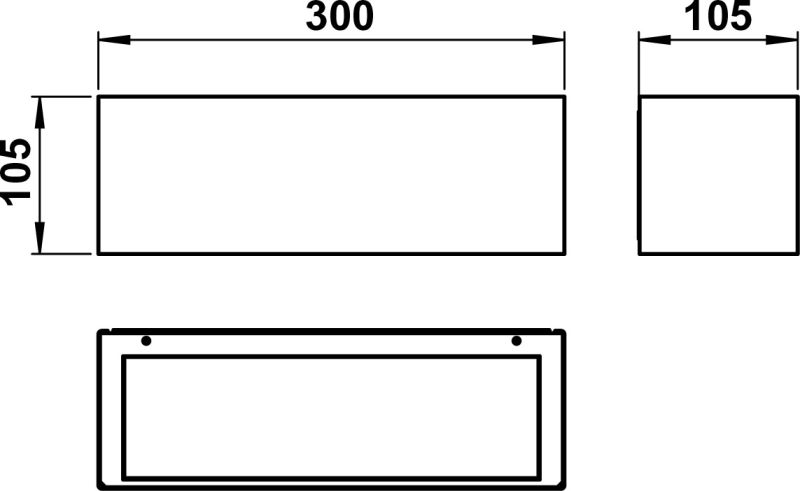

Dimensioned drawing
Full catalog 21 / 22
Spare parts
90220378 - G 378, frosted flashed glass ESG show

Additional information

Weight 2,90 kg
Suitable for wall mounting

Yes

Lamp type

Compact fluorescent lamp

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Lamp holder

G24d-3

Suitable for number of lamps

1

Material housing

Stainless steel

Number of poles

3

Power factor

1

Suitable for surface mounting

Yes

Conductor cross section

2.5 mm²

Colour housing

Stainless steel

Material cover

Glass opal

Voltage type

AC/DC

Type of control gear

Low-loss ballast inductive

Nominal voltage

230 V

With control gear

Yes

Dimming depending on control gear

Yes

Light sharing

Symmetric

Width

300 mm

Height/depth

105 mm

Length

105 mm

Type of wiring

Ending

Suitable for lamp power

26 W

Light output

Direct

Height

< 700 mm

Photobiological safety according to EN 62471

RG1

Surface protection housing

Untreated

Mounting Type

Wand

Light output

1-seitig

Max. system power

26 W

No dim function

Yes

Connection type

Screwed terminal

Light type

Wandleuchte

Beam angle

Open beam/diffuse

Exchangeable control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Unified Glare Ratio (UGR)

1

Degree of protection (IP)

IP44

Protection class

I

Shape

Eckig
