Data sheet
Article number
Select a color, please
Wall light
type ..0275
€373,00 – €429,10
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
0.42361111111111 W
Rated luminous flux according to IEC 62722-2-1
1000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Style | Modern |
| Shape | Eckig |
| Conductor cross section | 2.5 mm² |
| Colour rendering index CRI | 80-89 |
| Number of poles | 3 |
| Type of wiring | Ending |
| Mounting method | Wand |

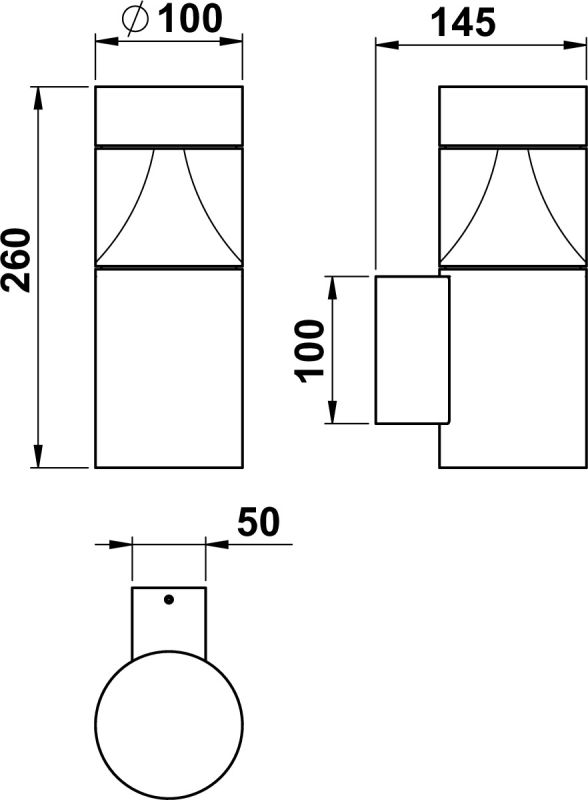

| Outer diameter | 100 mm |
| Height/depth | 260 mm |
| Light sharing | Symmetric |
| No dim function | Yes |
| Length | 145 mm |
| Height | < 700 mm |
| Light type | Wandleuchte |
| Connection type | Screwed terminal |
| Max. system power | 10 W |
| Dimming depending on control gear | Yes |
| Surface protection housing | Lacquered |
| Power factor | 0.8 |
| Exchangeable control gear | No, Yes |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Stroboscope effect value SVM | 0.6 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Flickering value Pst LM | 0.5 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Rated life time L90/B10 at 25 °C | 50000 h |
| Rated life time L80/B10 at 25 °C | 50000 h |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of control gear | LED operating device voltage-controlled |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Light outlet | 1-seitig |
| Protection class | I |
| Impact strength | IK08 |
| Degree of protection (IP) | IP54 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Light outlet | Direct |
| Beam angle | Open beam/diffuse |
| Colour of light | White |
| With control gear | No, Yes |
Documents and files
Spare parts
| 10260504 - G-504, acrylic -tubes clear | show |
