Article number Select a color, please

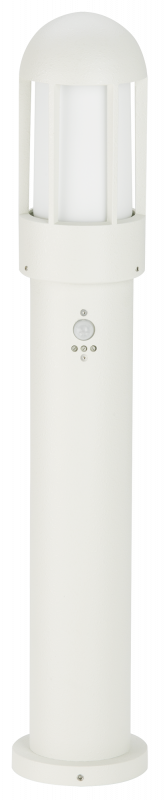

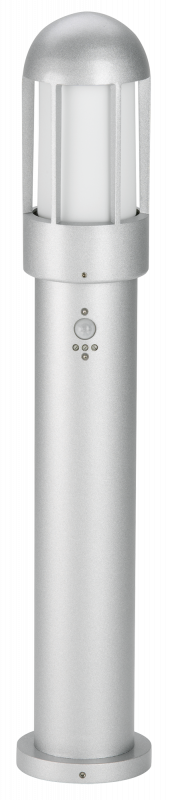

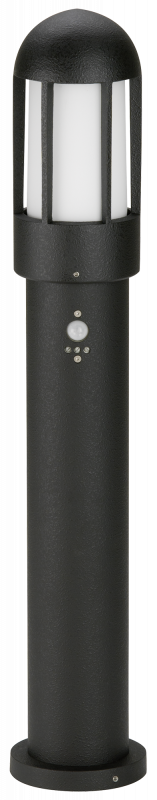

Bollard light

type ..2002

418,50481,00

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

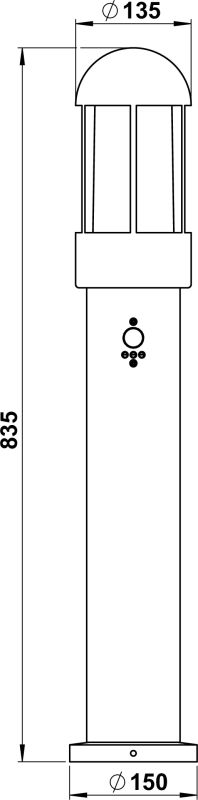

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 662002
Offertext
For: 682002
Offertext
For: 692002
Full catalog 21 / 22
Spare parts
90210096 - G 96, opal glass cylinder, matt show
Accessories
690010 - Earth mounting base type ..0010 show
690039 - Installation kit relay circuit 690039 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Lamp type

HV halogen lamp, Incandescent lamp

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Colour housing

Black, Silver, White

Material cover

Glass opal

Surface protection

Lacquered

Material housing

Aluminium

Suitable for number of lamps

1

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

With movement sensor

Yes

With base plate

Yes

Power factor

1

Width

150 mm

Light type

Standleuchte

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Lamp holder

E27

With light sensor

Yes

Light output

Direct/indirect

Suitable for lamp power

1 – 75 W

Protection class

I

Degree of protection (IP)

IP44

Height

700 – 1000 mm

Style

Modern

Lowest energy efficiency class of the exchangeable lamp

E

Type of wiring

Suitable for through wiring

Diameter

135 mm

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Height/depth

835 mm

Coverage

90 °

Max. system power

75 W

Light output

2-seitig

Shape

Eckig
