Article number Select a color, please

Wall light

type ..0617

137,70158,20

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

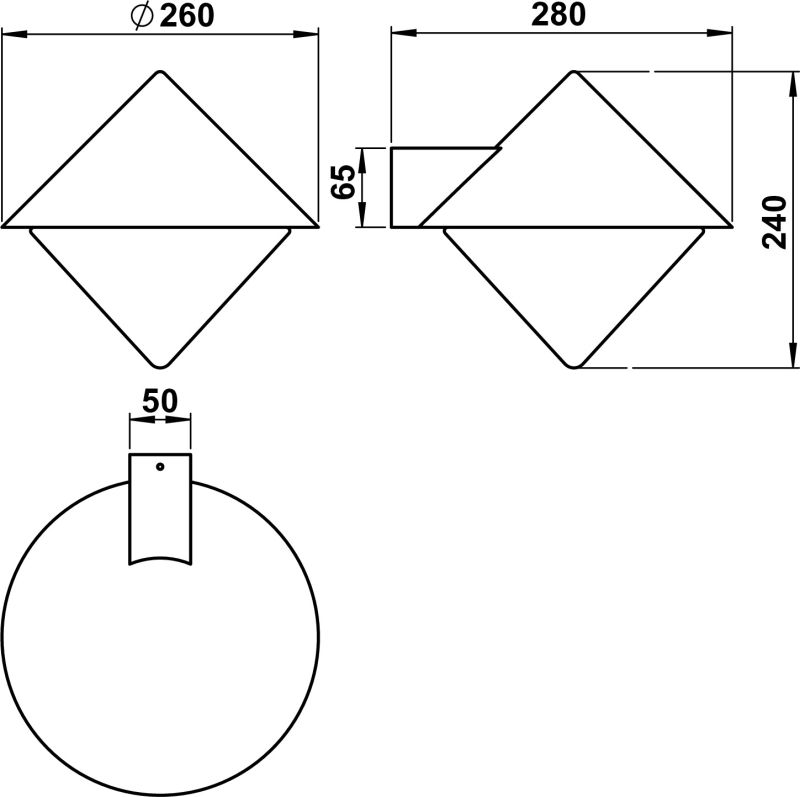

Dimensioned drawing
Light distribution curve
Offertext
For: 660617
Offertext
For: 680617
Offertext
For: 690617
Full catalog 21 / 22
Spare parts
90210100 - G 100 Opal glass frosted, cone shape pointed show
Accessories
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Light sharing

Symmetric

Power factor

1

Lamp holder

E27

Material housing

Aluminium

Colour housing

Black, Silver, White

Type of control gear

Not required

Nominal voltage

230 V

Protection class

I

Dimming manufacturer's proprietary system

Yes

Material cover

Glass opal

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Lowest energy efficiency class of the exchangeable lamp

A

Dimming depending on control gear

Yes

No dim function

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Height/depth

240 mm

Degree of protection (IP)

IP44

Highest energy efficiency class of the exchangeable lamp

A++

Length

280 mm

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Wand

Light type

Wandleuchte

Light output

1-seitig

Height

< 700 mm

Outer diameter

260 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

2.5 mm²

Style

Modern
