Article number Select a color, please

Bollard light

type ..2019

442,10508,30

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Degree of protection (IP)

IP44

Voltage type

AC

Connection type

Screwed terminal

Diameter

110 mm

Width

150 mm

Highest energy efficiency class of the exchangeable lamp

A++

Length

120 mm

Type of wiring

Suitable for through wiring

Suitable for number of lamps

1

Height/depth

900 mm

Lowest energy efficiency class of the exchangeable lamp

E

Surface protection

Lacquered

Type of control gear

Not required

With base plate

Yes

Type of luminaire

Bollard luminaire

Conductor cross section

2.5 mm²

Nominal voltage

230 V

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Coverage

90 °

Power factor

1

Light output

2-seitig

Light type

Standleuchte

Height

700 – 1000 mm

Protection class

I

Max. system power

75 W

Light output

Direct/indirect

Style

Modern

Number of poles

3

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 25 KB

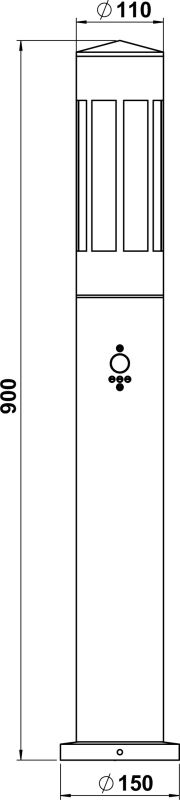

Dimensioned drawing
PDF | 90 KB
Instruction manual
PDF | 166 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 662019
TXT | 315 B
Offertext
For: 682019
TXT | 314 B
Offertext
For: 692019
TXT | 292 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210252 - G 252, glass opal matt, round show
Accessories
690010 - Earth mounting base type ..0010 show
690039 - Installation kit relay circuit 690039 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show
