Data sheet
Article number
Select a color, please

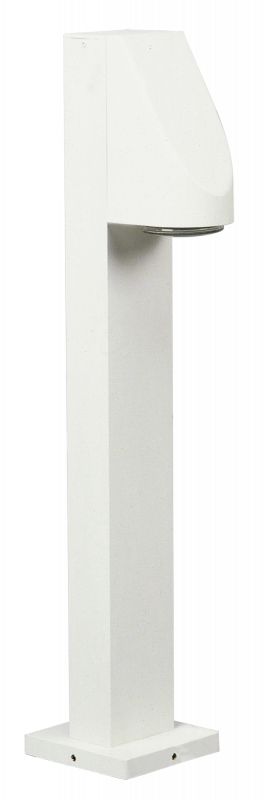

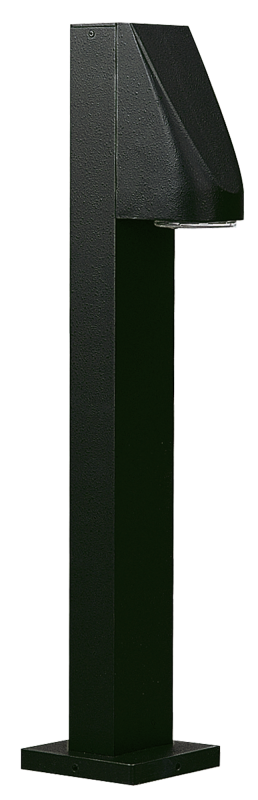

Bollard light
type ..2077
€304,90 – €350,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
0 - 50 W
Material cover
Glass transparent
Documents and files
Assembly instruction

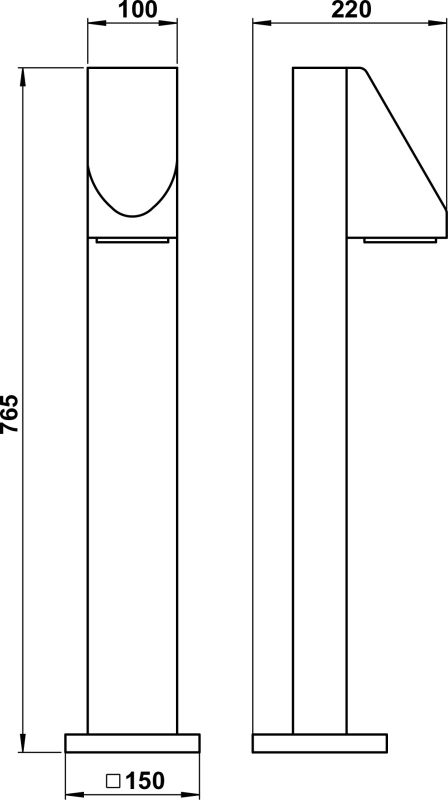

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662077
Offertext
For: 682077
Offertext
For: 692077
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Surface protection | Lacquered |
| Lamp holder | GU10 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Colour housing | Black, Silver, White |
| Material cover | Glass transparent |
| Nominal voltage | 230 V |
| Voltage type | AC/DC |
| Type of control gear | Not required |
| With base plate | Yes |
| Length | 220 mm |
| Lamp type | HV halogen lamp |
| Height/depth | 765 mm |
| Connection type | Screwed terminal |
| Power factor | 1 |
| Width | 100 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Conductor cross section | 2.5 mm² |
| Degree of protection (IP) | IP43 |
| Light type | Standleuchte |
| Height | 700 – 1000 mm |
| Protection class | I |
| Suitable for lamp power | 0 – 50 W |
| Max. system power | 55 W |
| Style | Modern |
| Number of poles | 3 |
| Type of wiring | Suitable for through wiring |
| Light sharing | Symmetric |
| Light output | Indirect |
| Beam angle | Open beam/diffuse |
| Shape | Eckig |
