Data sheet

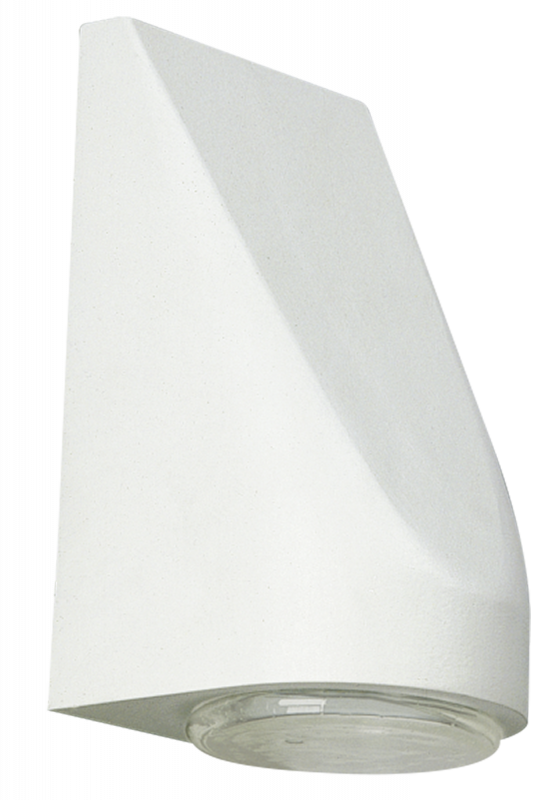

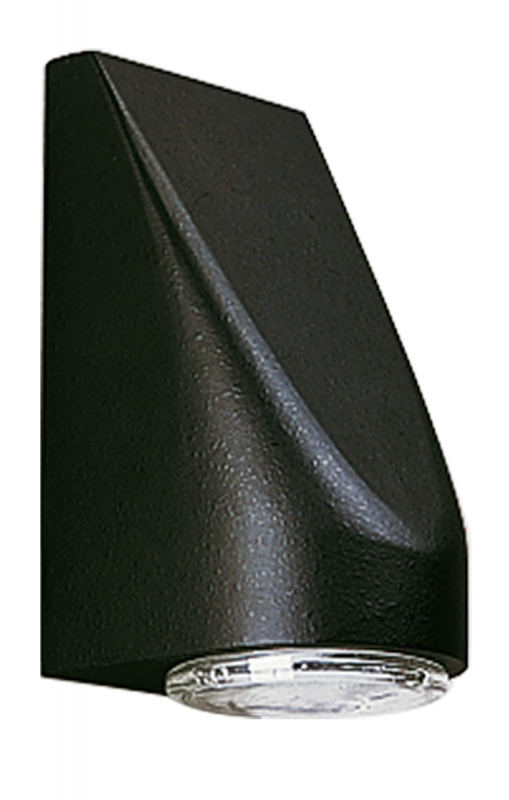

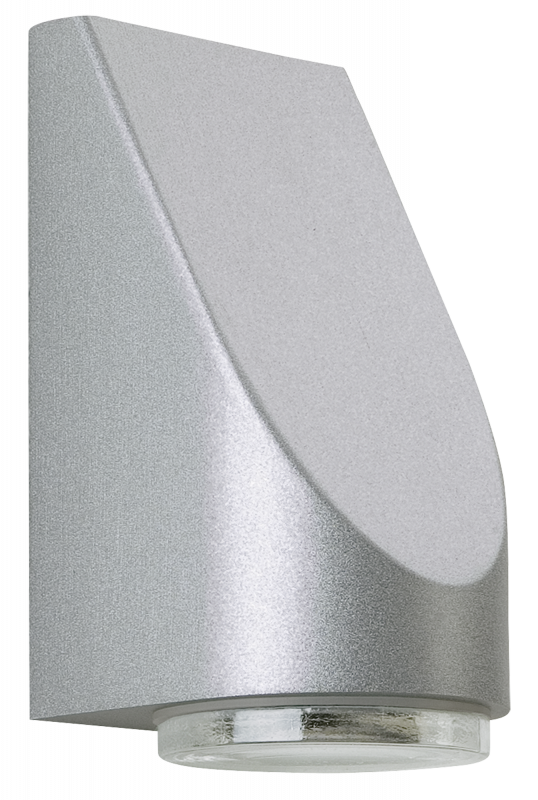

Wall light Silver Product Image Article 690671
Article number Select a color, please

Wall light

type ..0671

€250,40 – €287,90

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass transparent
Spare parts
90210048 - G 48, bubble glass insert clear show

Additional information

Weight N/A
Suitable for wall mounting

Yes
Protection class

I
Colour housing

Black, Silver, White
Material cover

Glass transparent
Material housing

Aluminium
Suitable for surface mounting

Yes
Voltage type

AC/DC
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Colour rendering index CRI

80-89
With light source

Yes

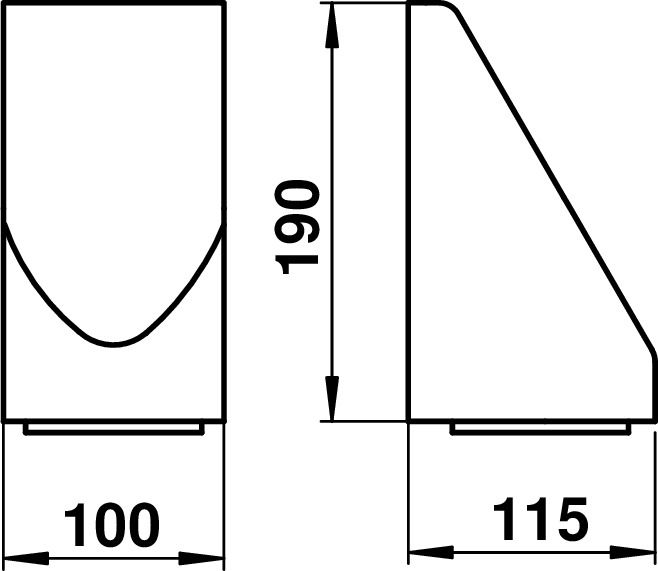

Height/depth

190 mm
Colour of light

White
Nominal voltage

230 V
Suitable for number of lamps

1
Lamp type

LED exchangeable
With control gear

Yes
Type of control gear

LED operating device voltage-controlled
Colour temperature

3000 K
Length

115 mm
No dim function

Yes
Flickering value Pst LM

1
Max. number of luminaires per miniature circuit breaker B16

20
Style

Modern
Dimming depending on control gear

Yes
Light sharing

Symmetric
Width

100 mm
Rated luminous flux according to IEC 62722-2-1

900 lm
Beam angle

Open beam/diffuse
Light output

1-seitig
Lowest energy efficiency class of the exchangeable lamp

E
Max. number of luminaires per miniature circuit breaker C16

30
Power factor

0.9
Energy efficiency class of the provided exchangeable built-in lamp

E
Degree of protection (IP)

IP43
Light output

Direct
Connection type

Screwed terminal
Max. system power

10 W
Suitable for lamp power

10 W
Photobiological safety according to EN 62471

RG1
Highest energy efficiency class of the exchangeable lamp

A++
Exchangeable control gear

Yes
Light type

Wandleuchte
Number of poles

3
Mounting Type

Wand
Shape

Angular, Eckig
Type of wiring

Ending
Surface protection housing

Lacquered
Height

< 700 mm
Conductor cross section

2.5 mm²
Stroboscope effect value SVM

0.4
Colour consistency (McAdam ellipse)

SDCM3
Unified Glare Ratio (UGR)

1
