Article number 692265

Bollard light

type ..2265

312,10

Description

Albert bollard light 692265 in stainless steel with opal glass. Suitable for 1 x incandescent lamp A60 75W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground socket type no. 690010.protection class IP 44 – protection class : d 103 x 700 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

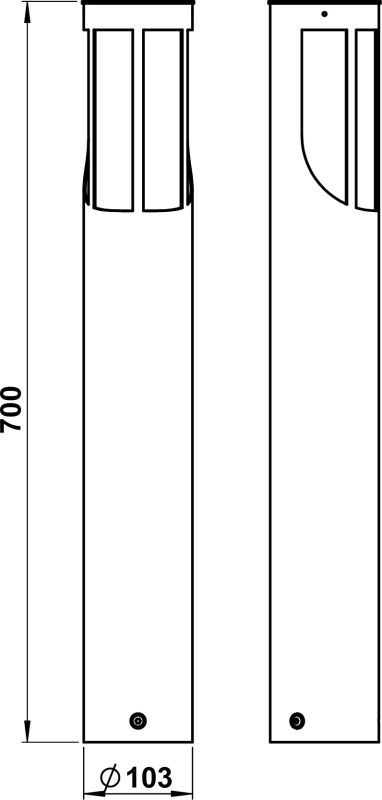

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
690080 - Recessed housing with protective contact socket IP44 / D show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight 3,70 kg
Connection type

Screwed terminal

Voltage type

AC

Colour housing

Stainless steel

Nominal voltage

230 V

Max. system power

75 W

Material cover

Glass opal

Type of control gear

Not required

With base plate

Yes

Material housing

Stainless steel

Diameter

103 mm

Type of wiring

Suitable for through wiring

Protection class

I

Suitable for lamp power

1 – 75 W

Lamp type

Incandescent lamp

Suitable for number of lamps

1

Lamp holder

E27

Highest energy efficiency class of the exchangeable lamp

A++

Type of luminaire

Bollard luminaire

Housing material quality

Stainless steel 304 (V2A)

Height/depth

700 mm

Light sharing

Asymmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Number of poles

3

Conductor cross section

2.5 mm²

Light output

2-seitig

Style

Edelstahl, Modern

Light type

Standleuchte

Height

< 700 mm, 700 – 1000 mm

Power factor

1

Shape

Eckig
