Article number 690555

Base luminaire

type ..0555

This product is no longer in our assortment.

Nicht lieferbar

Specifications

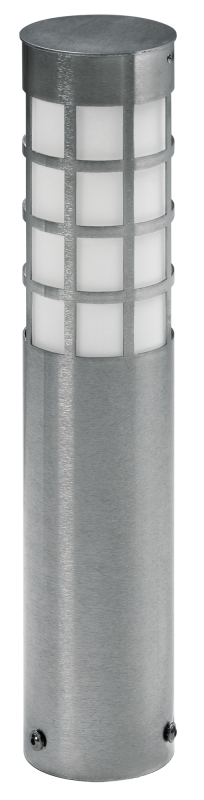

Albert base lamp 690555 in stainless steel, with opal glass. Suitable for 1 x lamp 75W, socket E27. Ready for connection with mounting plate for screwing onto a foundation or onto the ground socket type no. 690010.protection class IP 44 – protection class : d 104 x 500 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 2,60 kg
Conductor cross section

2.5 mm²

Degree of protection (IP)

IP44

Suitable for number of lamps

1

Highest energy efficiency class of the exchangeable lamp

A++

Protection class

I

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Surface protection

Lacquered

With base plate

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Power factor

1

Max. system power

75 W

Height/depth

500 mm

Type of luminaire

Pedestal luminaire

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Light output

Direct/indirect

Diameter

103 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Light output

2-seitig

Connection type

Screwed terminal

Height

< 700 mm

Housing material quality

Stainless steel 304 (V2A)

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

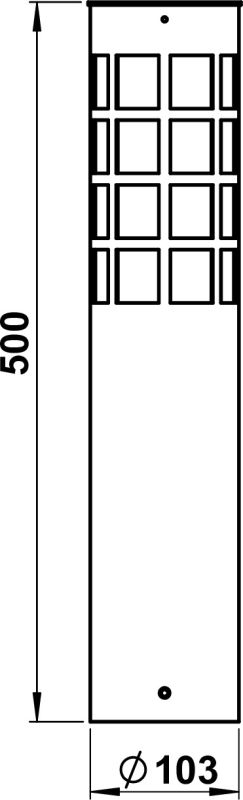

Dimensioned drawing
PDF | 17 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210281 - G 281, opal glass matt show
Accessories
690010 - Earth mounting base type ..0010 show
