Article number Select a color, please

Bollard light

type ..2015

282,20324,80

Clear
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

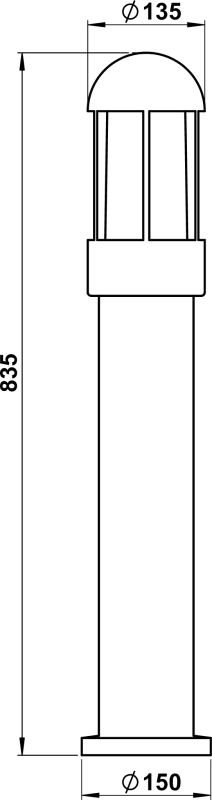

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Offertext
For: 662015
Offertext
For: 682015
Offertext
For: 692015
Full catalog 21 / 22
Spare parts
90210096 - G 96, opal glass cylinder, matt show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750309 - LED Retrofit Tube show

Additional information

Weight N/A
Type of luminaire

Bollard luminaire

Lamp type

HV halogen lamp, Incandescent lamp

Height/depth

835 mm

Connection type

Screwed terminal

Power factor

1

Width

150 mm

Lowest energy efficiency class of the exchangeable lamp

E

Diameter

135 mm

Suitable for number of lamps

1

Material housing

Aluminium

Highest energy efficiency class of the exchangeable lamp

A++

Colour housing

Black, Silver, White

Material cover

Glass opal

Nominal voltage

230 V

Voltage type

AC

Type of control gear

Not required

With base plate

Yes

Type of wiring

Suitable for through wiring

Surface protection

Lacquered

Lamp holder

E27

Light type

Standleuchte

Conductor cross section

2.5 mm²

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Degree of protection (IP)

IP44

Height

700 – 1000 mm

Shape

Eckig

Protection class

I

Suitable for lamp power

1 – 75 W

Max. system power

75 W

Style

Modern

Number of poles

3

Light sharing

Symmetric

Light output

2-seitig
