Article number 660862

Pole light

type ..0862

785,70

Description

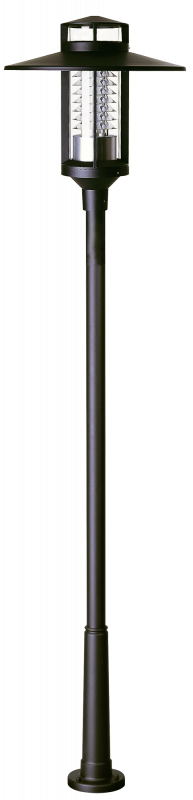

Albert post-top luminaire 660862 with sloping roof and skylight attachment, made of corrosion-resistant cast aluminium, with highly transparent clear Plexiglas and reflector made of highly specular anodised aluminium, equipped for 1 x TC-L 24W, lampholder 2G 11, with post, ready for screwing onto a foundation or onto the earth burial base type no. 690011.colour: black – protection class IP 54 – protection class : d 510 x 2400 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Black
Lamp type
LED exchangeable
With light source
Yes
Lamp holder
2G11
Suitable for lamp power
27 W
Material cover
Plastic, transparent
Pole included
Ja
Documents and files
Assembly instruction

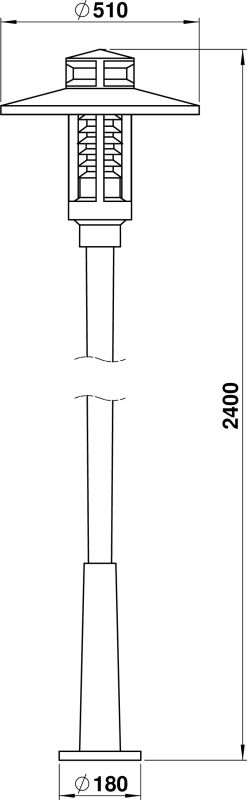

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
10260230 - G-230, acrylic clear 120 x 3, 414 mm show
Accessories
690011 - Earth mounting base type ..0011 show

Additional information

Weight 10,20 kg
Height

> 1700 mm

Suitable for lamp power

27 W

Lamp holder

2G11

With light source

Yes

Type of control gear

Low-loss ballast inductive

Dimming phase cut-off

Yes

Material housing

Aluminium

Suitable for number of lamps

1

Dimming phase cut-on

Yes

Height/depth

2400 mm

Nominal voltage

230 V

Voltage type

AC/DC

Mounting Type

Post top

Material cover

Plastic, transparent

Colour housing

Black

Surface protection

Lacquered

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP54

Connection type

Screwed terminal

Pole included

Ja

Type of wiring

Suitable for through wiring

No dim function

Yes

Light distributor

Reflector

Highest energy efficiency class of the exchangeable lamp

A+

Exchangeable control gear

Yes

Colour consistency (McAdam ellipse)

SDCM3

Lamp type

LED exchangeable

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

With control gear

Yes

Cable length

0 m

Light type

Standleuchte

Max. system power

27 W

Diameter

510 mm

Power factor

0.9

Protection class

I

Conductor cross section

2.5 mm²

Number of poles

3

Shape

Eckig
