Article number Select a color, please

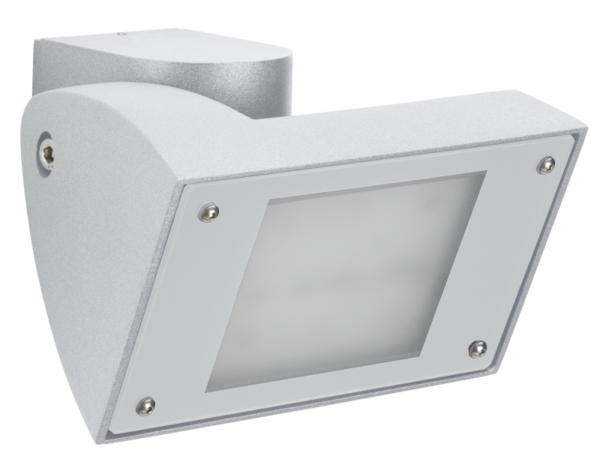

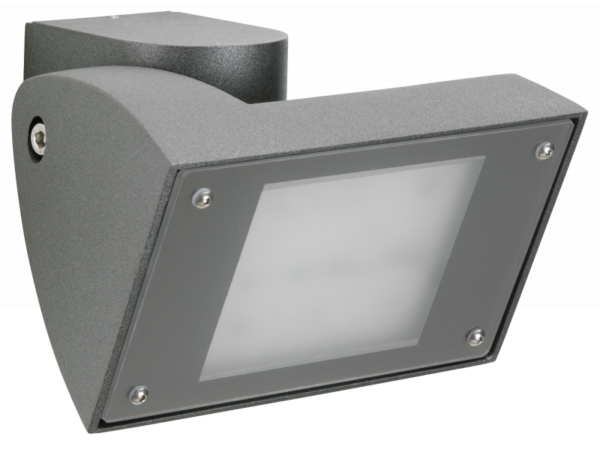

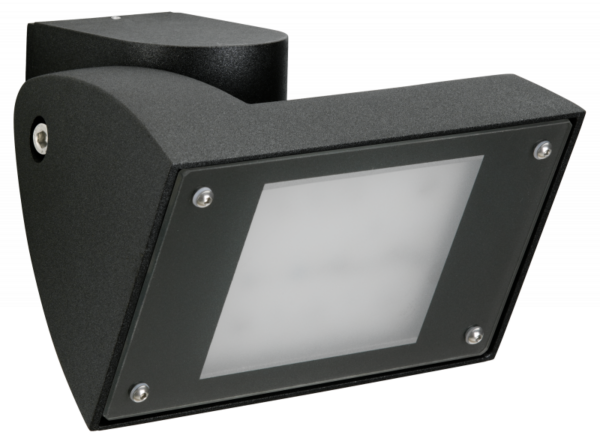

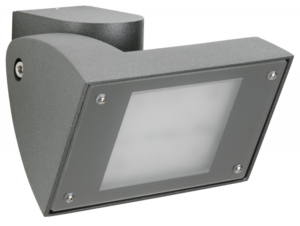

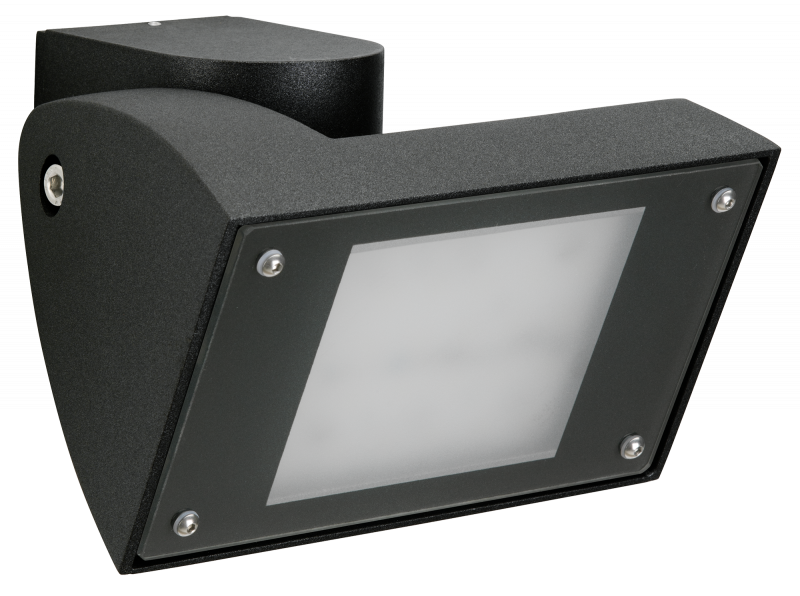

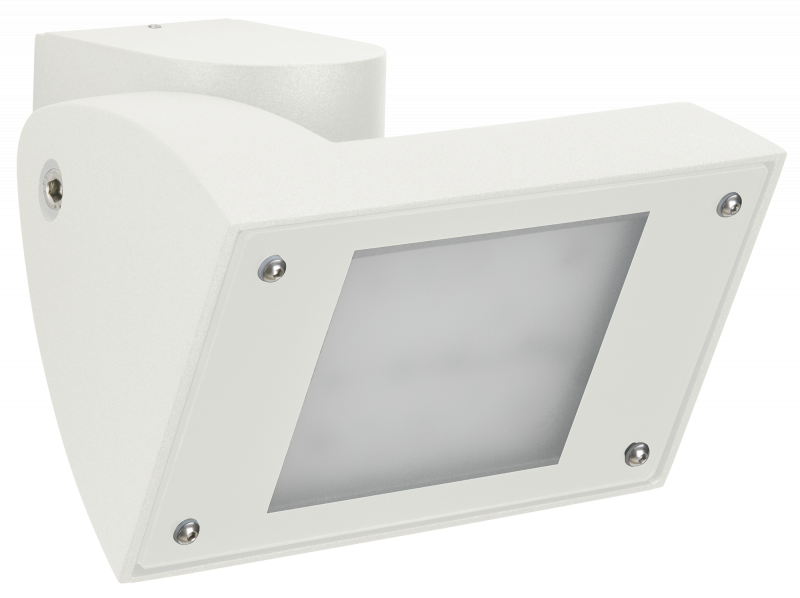

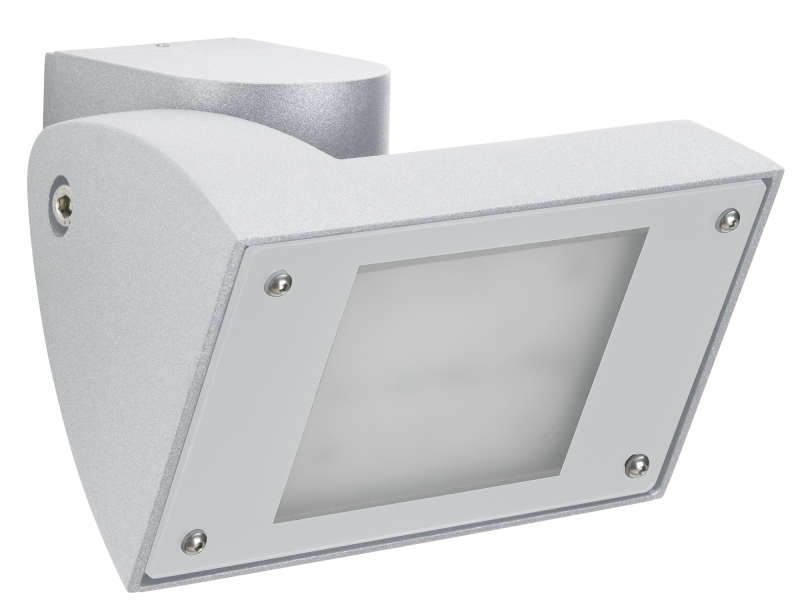

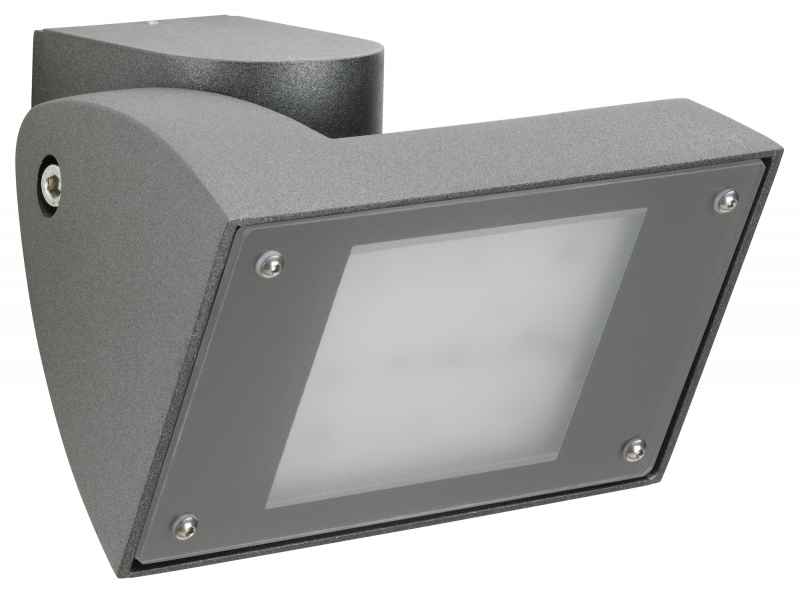

Wall spotlight

type no. 622429

This product is no longer in our assortment.

Nicht lieferbar

Clear
Features
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux acc. IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

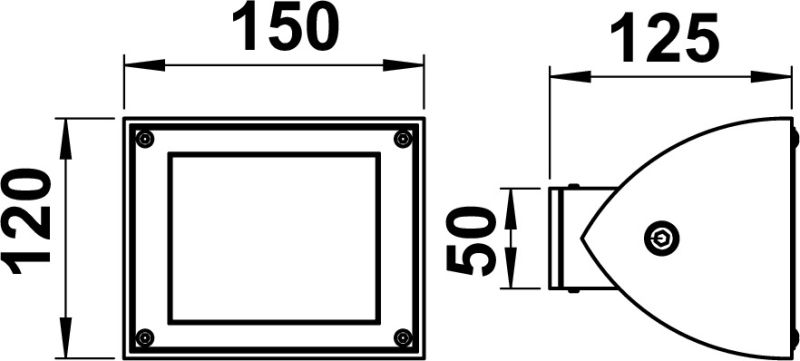

Dimensioned drawing
Offertext
For: 622429
Offertext
For: 662429
Offertext
For: 682429
Offertext
For: 692429
Full catalog 21 / 22
Spare parts
90220485 - G 485, stepped glass show

Additional information

Weight N/A
Suitable for surface mounting

Yes

Suitable for pedestal/floor mounting

Yes

Material cover

Glass transparent

Suitable for ceiling mounting

Yes

Adjustability

Swivelling

Lamp type

LED exchangeable

With light source

Yes

Colour housing

Anthracite, Black, Silver, White

Nominal voltage

230 V

Material housing

Aluminium

Control gear included

Yes

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Surface protection

Lacquered

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Max. system power

16 W

Rated ambient temperature acc. IEC62722-2-1

15 – 25 °C

Beam angle

Medium beam 21-40°

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

A+

Degree of protection (IP)

IP54

Width

150 mm

Height/depth

120 mm

Colour of light

White

Colour temperature

3000 K

Colour rendering index CRI

80-89

Number of poles

3

Rated luminous flux acc. IEC 62722-2-1

1600 lm

Power factor

0.9

Protection class

I

Suitable for lamp power

16 W

No dim function

Yes

Light sharing

Symmetric

Length

125 mm

Luminous flux

1600 lm

Connectable conductor cross section

0.75 – 2.5 mm²

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Type of wiring

Ending

Suitable for wall mounting

Yes

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A+

Rated life time L80/B50 at 25 °C

50000 h

Shape

Eckig

Mounting Type

Decke, Wand

Light output

1-seitig

Height

< 700 mm
