Data sheet
Article number
Select a color, please
Spit lamp
type ..2100
There are notes for product colors
Please select a color below to get more information about your desired color, if applicable.
Please select a color below to get more information about your desired color, if applicable.
This product is no longer in our assortment.
This product is no longer in our assortment.
You can find a successor of this product listed below.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire body can be rotated.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
4.5 W
Rated luminous flux according to IEC 62722-2-1
330 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

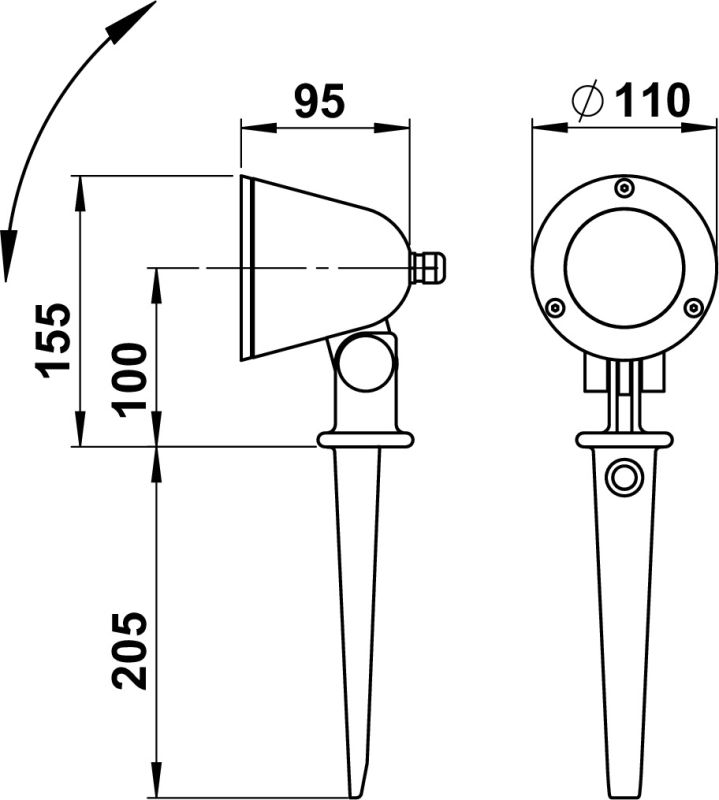

Dimensioned drawing
Offertext
For: 662100
Offertext
For: 682100
Offertext
For: 692100
Full catalog 21 / 22
Additional information
| Weight | N/A |
|---|---|
| Length | 95 mm |
| Suitable for pedestal/floor mounting | Yes |
| Surface protection | Lacquered |
| Luminous flux | 330 lm |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Material housing | Aluminium |
| Height/depth | 155 mm |
| Dimming phase cut-off | Yes |
| Adjustability | Rotating and swivelling |
| Colour of light | White |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| No dim function | Yes |
| Number of poles | 3 |
| Light distributor | Reflector |
| Voltage type | AC/DC |
| Max. system power | 4.5 W |
| With control gear | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Lamp type | LED exchangeable |
| Colour temperature | 3000 K |
| Nominal voltage | 230 V |
| Material cover | Glass transparent |
| Stroboscope effect value SVM | 0.4 |
| Type of wiring | Ending |
| Suitable for lamp power | 4.5 W |
| Power factor | 0.9 |
| Light output | Direct |
| Rated luminous flux according to IEC 62722-2-1 | 330 lm |
| Flickering value Pst LM | 1 |
| Conductor cross section | 0 mm² |
| Light sharing | Symmetric |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Beam angle | Medium beam 21-40° |
| Unified Glare Ratio (UGR) | 1 |
| Colour rendering index CRI | 80-89 |
| Beam angle adjustable | Continuously variable |
| Protection class | I |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Exchangeable control gear | Yes |
| Degree of protection (IP) | IP54 |
| Light output | 1-seitig |
| Colour housing | Black, Silver, White |
| Connectable conductor cross section | 0 mm² |
| Mounting Type | Spieß |
| Height | < 700 mm |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Shape | Eckig |
